Individual hose record

4I-1410 Hose Repair Specifications

Excavator · Caterpillar · CAT®317-A N · Hydraulic Pump

Finished length1,590 mm

Locate this hose

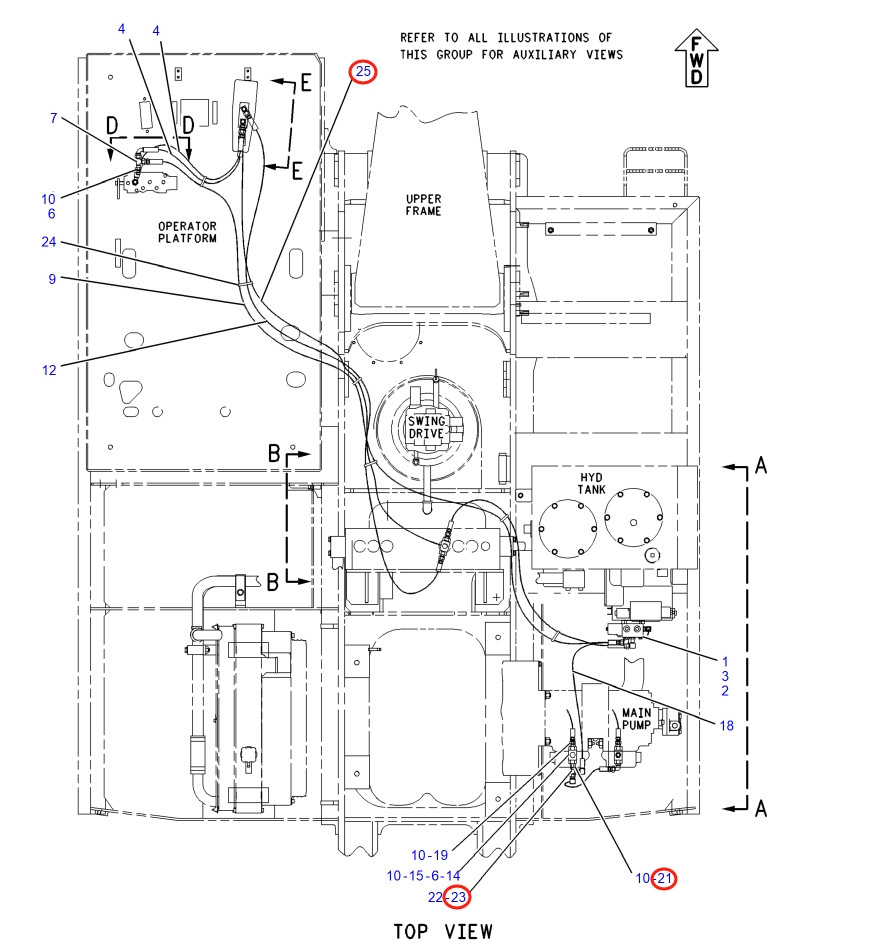

Installation diagram — Pipe No. 21

Locate Pipe No. 21 in the diagram, then confirm part number 4I-1410 before removing the hose.

Caterpillar CAT®317-A N installation diagram showing hydraulic hose 4I-1410 at Pipe No. 21 — Caterpillar CAT®317-A NPart 4I-1410 · Pipe No. 21Open full-size diagram

Repair specifications

Part number: 4I-1410
Diagram pipe number: 21
Installation route: 液压泵~
Hose specification: DN10;-6;10.3Mpa
Finished length: 1,590 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 22

5I-3124

Installation route: 液压泵~

Length: 700 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 27

124-0872

Installation route: 液压泵~

Length: 900 mm
Specification: DN13;-8;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 7

7I-0903

Installation route: 液压泵~液压泵吸油铁管

Length: 600 mm
Specification: DN13;-8;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
