Individual hose record
571-9025 Hose Repair Specifications
Excavator · Caterpillar · CAT®317 · Attachments – Lock Valve
Finished length4,782 mm
Locate this hose

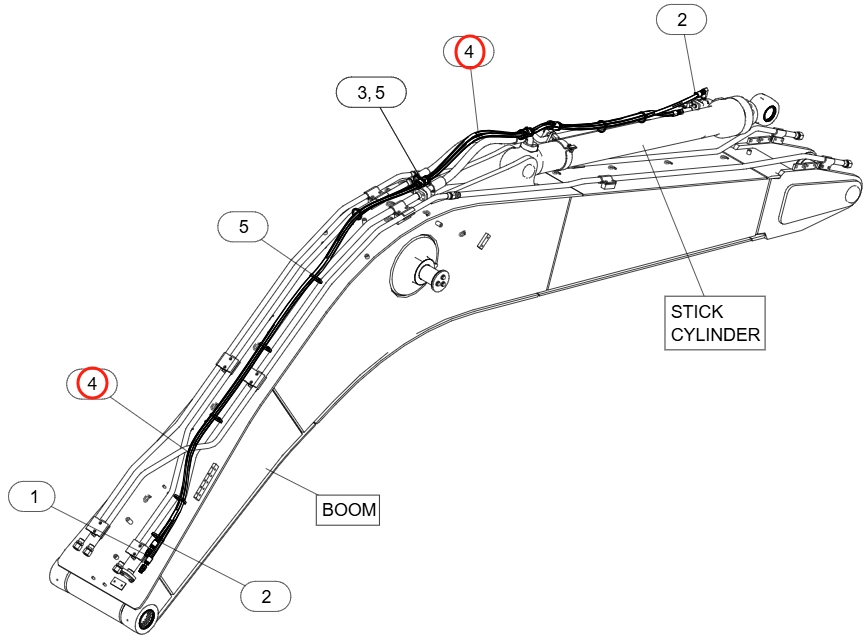

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 571-9025 before removing the hose.
Repair specifications
- Part number
- 571-9025
- Diagram pipe number
- 4
- Installation route
- 小臂油缸锁止阀
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 4,782 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
Same system
Related Hoses
- Length
- 700 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Diagram Pipe No. 26
600-5484
Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀
- Length
- 1,390 mm
- Specification
- DN10;6SH-6;42Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
For reference only. Confirm the actual hose before fabrication.
