Individual hose record

592-0245 Hose Repair Specifications

Excavator · Caterpillar · CAT®317 · Attachments – Lock Valve

Finished length700 mm

Locate this hose

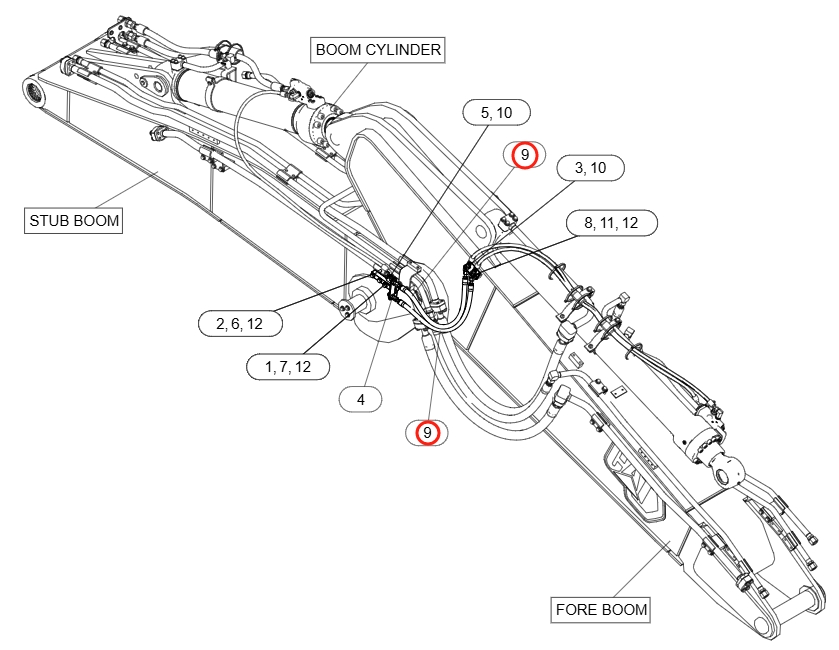

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 592-0245 before removing the hose.

Part number: 592-0245
Diagram pipe number: 9
Installation route: 小臂油缸锁止阀
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 700 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 4

Installation route: 小臂油缸锁止阀

Length: 4,782 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 17

Installation route: 小臂油缸锁止阀

Length: 1,700 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 26

Installation route: Left boom-cylinder lock valve → right boom-cylinder lock valveOriginal Chinese: 左大臂油缸锁止阀~右大臂油缸锁止阀

Length: 1,390 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
