Hose assembly specifications

F064937 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1070G Wheeled Harvester

Total length1,250 mm

Hose drawing

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

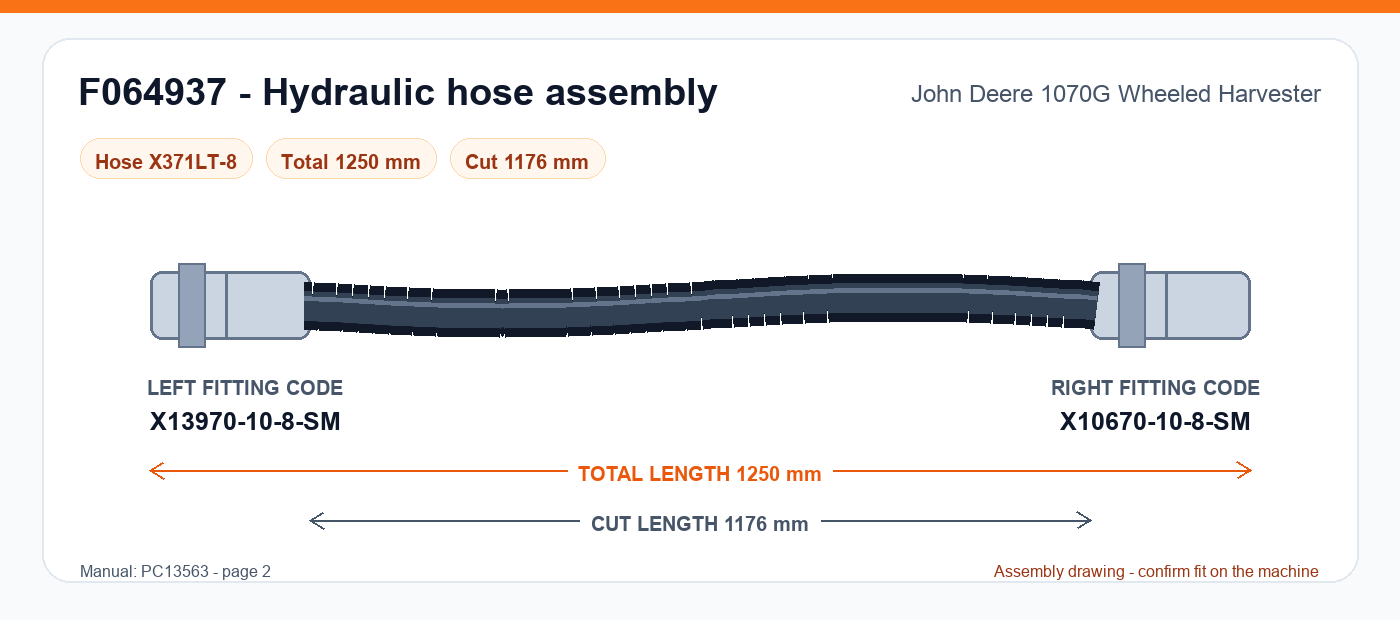

F064937 hydraulic hose assembly drawing for John Deere 1070G Wheeled Harvester - 1,250 mm total length, left fitting X13970-10-8-SM, right fitting X10670-10-8-SM — F064937 - 1,250 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1070G Wheeled Harvester
Part number: F064937
Hose type: X371LT-8
Total length: 1,250 mm
Cut length: 1,176 mm
Left-end hydraulic fitting code: X13970-10-8-SMLook up this code
Right-end hydraulic fitting code: X10670-10-8-SMJIC 37° female swivel straight · 7/8-14 UNF · 1/2 inch / DN12 hoseSee fitting details
Manual reference: PC13563, page 2

Hose assembly details

Part number: F064937
Hose type: X371LT-8
Total length: 1,250 mm
Cut length: 1,176 mm
Left fitting code: X13970-10-8-SM
Right fitting code: X10670-10-8-SM
Application: 1070G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II
Manual page: 2

Download manual

Same machine

More hoses for this machine

Manual page 3

F688969

Application: 1070G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II

Length: 2,250 mm
Cut length: 2,156 mm
Specification: X371LT-16
Left fitting: X10670-16-16-SM
Right fitting: X10670-16-16-SM

View hose specifications

Manual page 1

F062993

Application: 1070G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II

Length: 450 mm
Cut length: 392 mm
Specification: X461LT-4
Left fitting: X13946-6-4
Right fitting: X10646-6-4

View hose specifications

Manual page 2

F064094

Application: 1070G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II

Length: 3,850 mm
Cut length: 3,790 mm
Specification: X461LT-6
Left fitting: X10646-6-6
Right fitting: X10646-6-6

View hose specifications

Manual page 1

F043530

Application: 1070G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II

Length: 500 mm
Cut length: 442 mm
Specification: X461LT-4
Left fitting: X13946-6-4
Right fitting: X10646-6-4

View hose specifications

Manual page 2

F072936

Application: 1070G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II

Length: 3,650 mm
Cut length: 3,567 mm
Specification: X371LT-16
Left fitting: X10670-20-16-SM
Right fitting: X10670-16-16-SM

View hose specifications

Manual page 3

F688974

Application: 1070G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II

Length: 2,070 mm
Cut length: 1,988 mm
Specification: X371LT-12
Left fitting: X10670-12-12-SM
Right fitting: X10670-12-12-SM

View hose specifications

Manual page 1

F057057

Application: 1070G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II

Length: 1,800 mm
Cut length: 1,742 mm
Specification: X461LT-6
Left fitting: X13946-6-6
Right fitting: X10646-6-6

View hose specifications

Manual page 2

F064114

Application: 1070G Wheeled Harvester: Stage V / Tier 4, Rotating and Leveling Cabin, Gen II

Length: 1,250 mm
Cut length: 1,183 mm
Specification: X461LT-6
Left fitting: X13746-6-6
Right fitting: X10646-6-6

View hose specifications

For reference only. Confirm the actual hose before fabrication.
