Individual hose record
085-4610 Hose Repair Specifications
Excavator · Caterpillar · CAT®E200B · Control Valve
Locate this hose

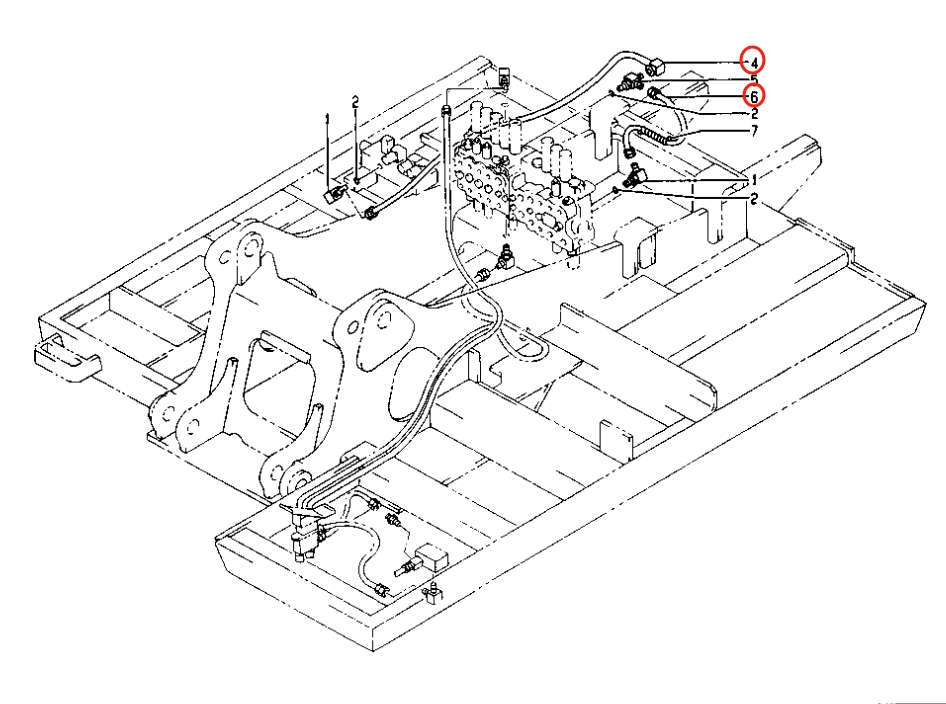

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 085-4610 before removing the hose.
Repair specifications
- Part number
- 085-4610
- Diagram pipe number
- 4
- Installation route
- 分配阀后~电磁阀
- Hose specification
- DN10;2SN-6;33Mpa
- Finished length
- 508 mm
- Working pressure
- 33 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
Workshop guide
Finding the correct hydraulic hose for Caterpillar CAT®E200B Control Valve
Start with the machine and route
For Caterpillar CAT®E200B Control Valve, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.
Read the dimensions before cutting
Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.
Records to compare
- 085-4610508 mm · DN10;2SN-6;33Mpa · 分配阀后~电磁阀
Use the drawing as a location check
Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.
For reference only. Confirm the actual hose before fabrication.
