Individual hose record

6W-7640 Hose Repair Specifications

Excavator · Caterpillar · CAT®215 · Attachments

Finished length1,400 mm

Locate this hose

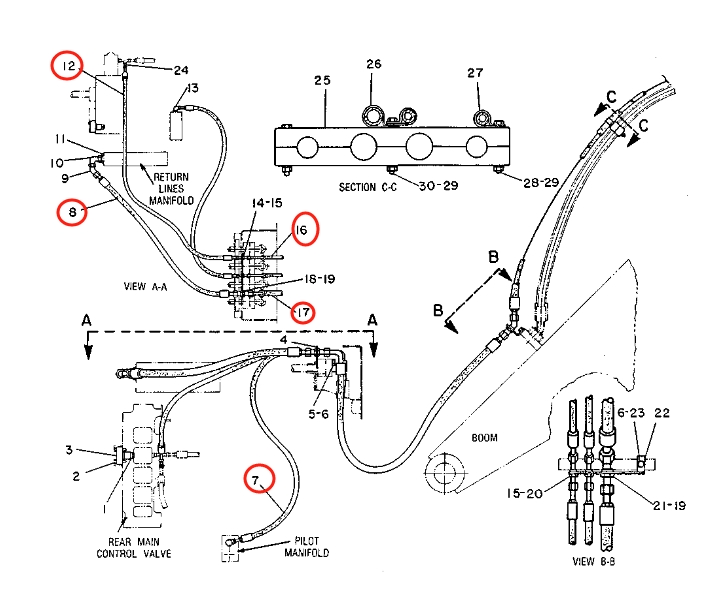

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 6W-7640 before removing the hose.

Caterpillar CAT®215 installation diagram showing hydraulic hose 6W-7640 at Pipe No. 8 — Caterpillar CAT®215Part 6W-7640 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 6W-7640
Diagram pipe number: 8
Installation route: 过渡接头(大臂上)~回油铁管
Hose specification: DN19;4SP-12;28Mpa
Finished length: 1,400 mm
Working pressure: 28 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 16

3V-1330

Installation route: 过渡阀块(分配阀前)~

Length: 686 mm
Specification: DN8;-5;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
