3V-1330 Hose Repair Specifications

Excavator · Caterpillar · CAT®215 · Attachments

Finished length686 mm

Locate this hose

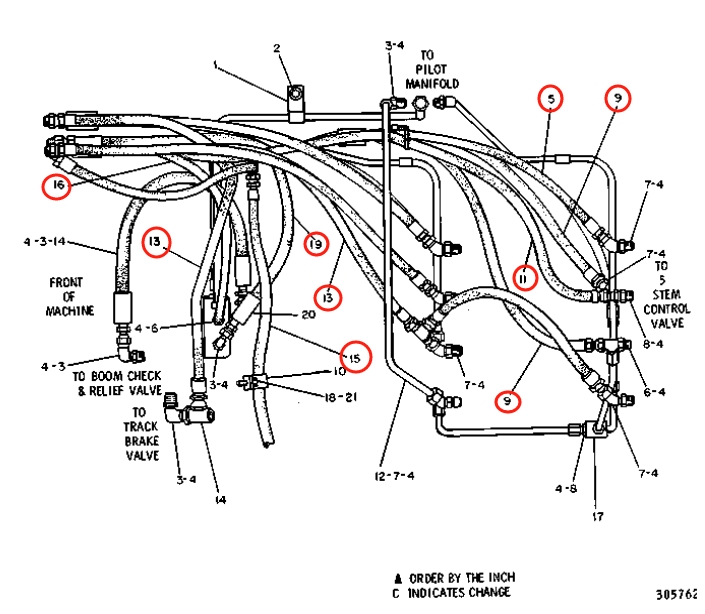

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 3V-1330 before removing the hose.

Caterpillar CAT®215 installation diagram showing hydraulic hose 3V-1330 at Pipe No. 16 — Caterpillar CAT®215Part 3V-1330 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: 3V-1330
Diagram pipe number: 16
Installation route: 过渡阀块(分配阀前)~
Hose specification: DN8;-5;15.7Mpa
Finished length: 686 mm
Working pressure: 15.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

6W-7640

Installation route: 过渡接头(大臂上)~回油铁管

Length: 1,400 mm
Specification: DN19;4SP-12;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
