9N-3370 Hose Repair Specifications

Excavator · Caterpillar · CAT®245B · Fuel Lines

Finished length260 mm

Locate this hose

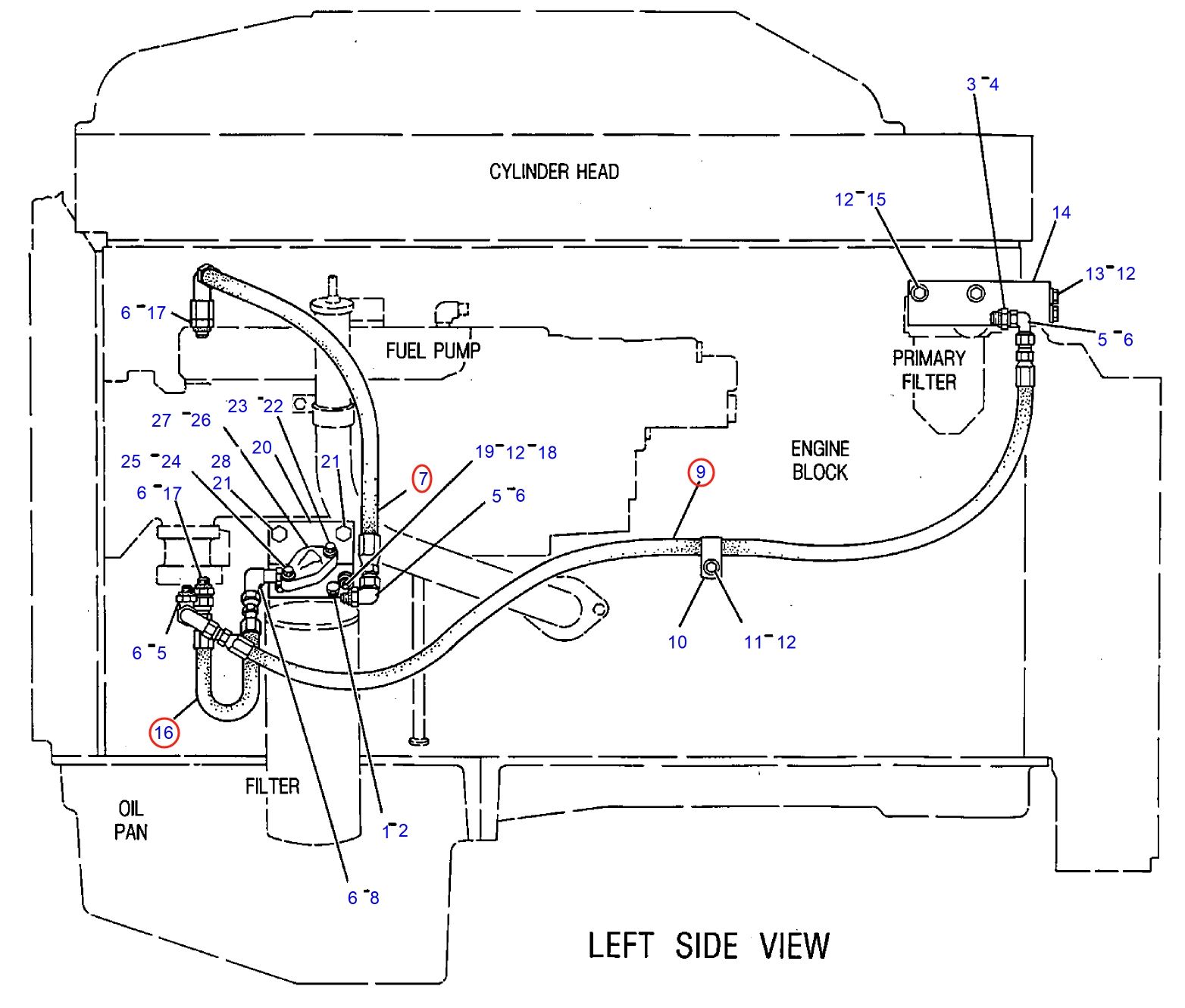

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 9N-3370 before removing the hose.

Caterpillar CAT®245B installation diagram showing hydraulic hose 9N-3370 at Pipe No. 16 — Caterpillar CAT®245BPart 9N-3370 · Pipe No. 16Open full-size diagram

Repair specifications

Part number: 9N-3370
Diagram pipe number: 16
Installation route: 燃油泵~燃油过滤器
Hose specification: DN8;-5;10.3Mpa
Finished length: 260 mm
Working pressure: 10.3 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 14

2V-8647

Installation route: 燃油箱~燃油喷油泵

Length: 520 mm
Specification: DN6;-4;17.5Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
