2V-8647 Hose Repair Specifications

Excavator · Caterpillar · CAT®245B · Fuel Lines

Finished length520 mm

Locate this hose

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 2V-8647 before removing the hose.

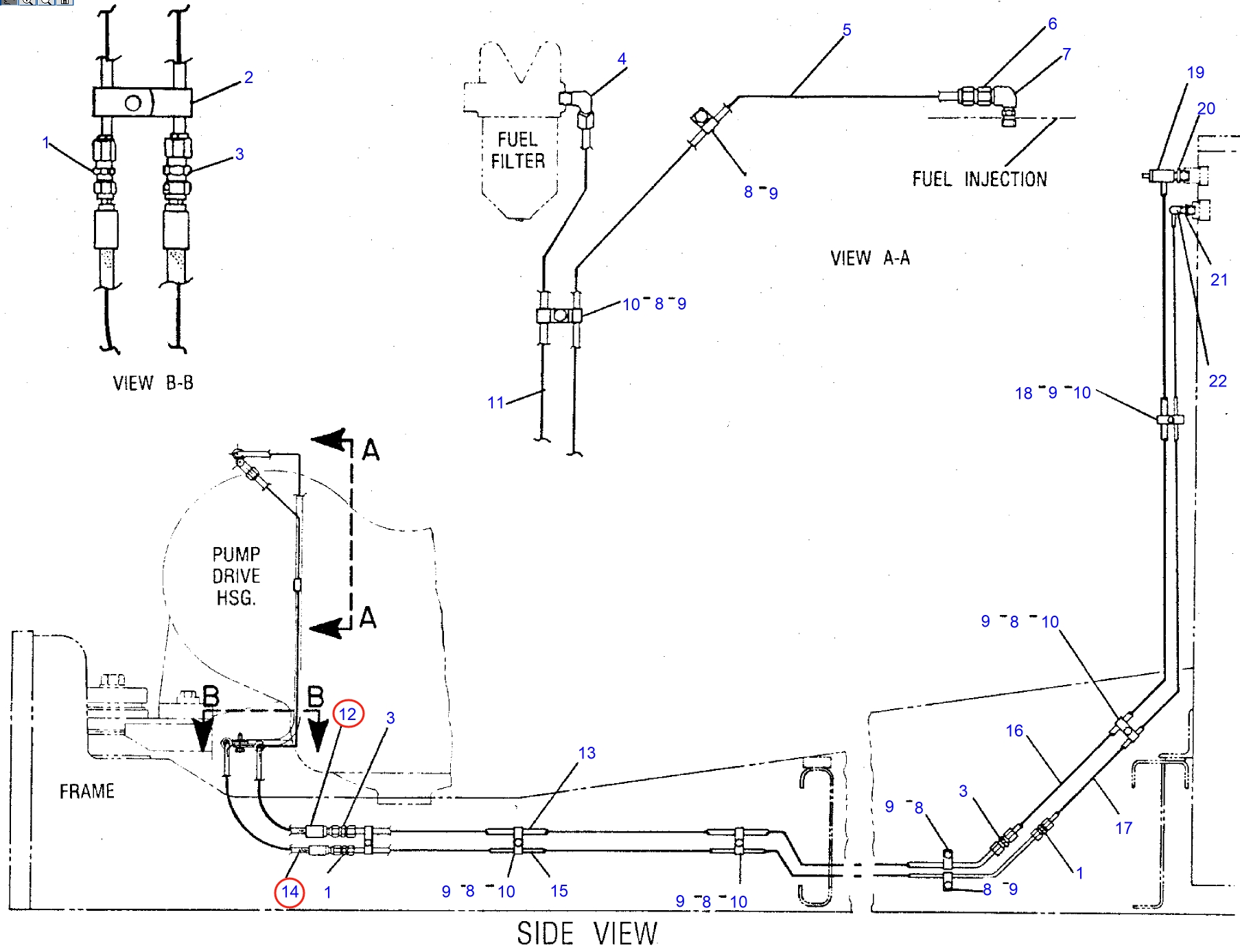

Caterpillar CAT®245B installation diagram showing hydraulic hose 2V-8647 at Pipe No. 14 — Caterpillar CAT®245BPart 2V-8647 · Pipe No. 14Open full-size diagram

Repair specifications

Part number: 2V-8647
Diagram pipe number: 14
Installation route: 燃油箱~燃油喷油泵
Hose specification: DN6;-4;17.5Mpa
Finished length: 520 mm
Working pressure: 17.5 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 16

9N-3370

Installation route: 燃油泵~燃油过滤器

Length: 260 mm
Specification: DN8;-5;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
