Individual hose record
8U-1332 Hose Repair Specifications
Excavator · Caterpillar · CAT®213B · Control Valve
Finished length580 mm
Locate this hose

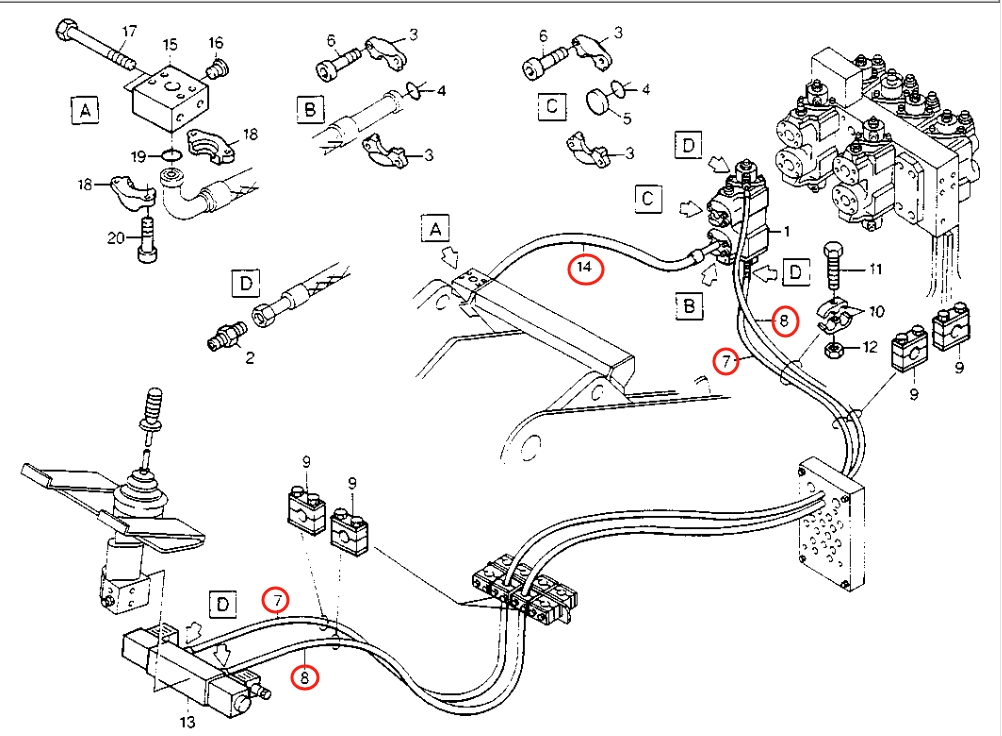

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 8U-1332 before removing the hose.
Repair specifications
- Part number
- 8U-1332
- Diagram pipe number
- 14
- Installation route
- 分配阀前~过渡阀块(大臂座销下)
- Hose specification
- DN25;4SP-16;28Mpa
- Finished length
- 580 mm
- Working pressure
- 28 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 1
