Individual hose record
8U-1059 Hose Repair Specifications
Excavator · Caterpillar · CAT®213B · Control Valve
Finished length1,655 mm
Locate this hose

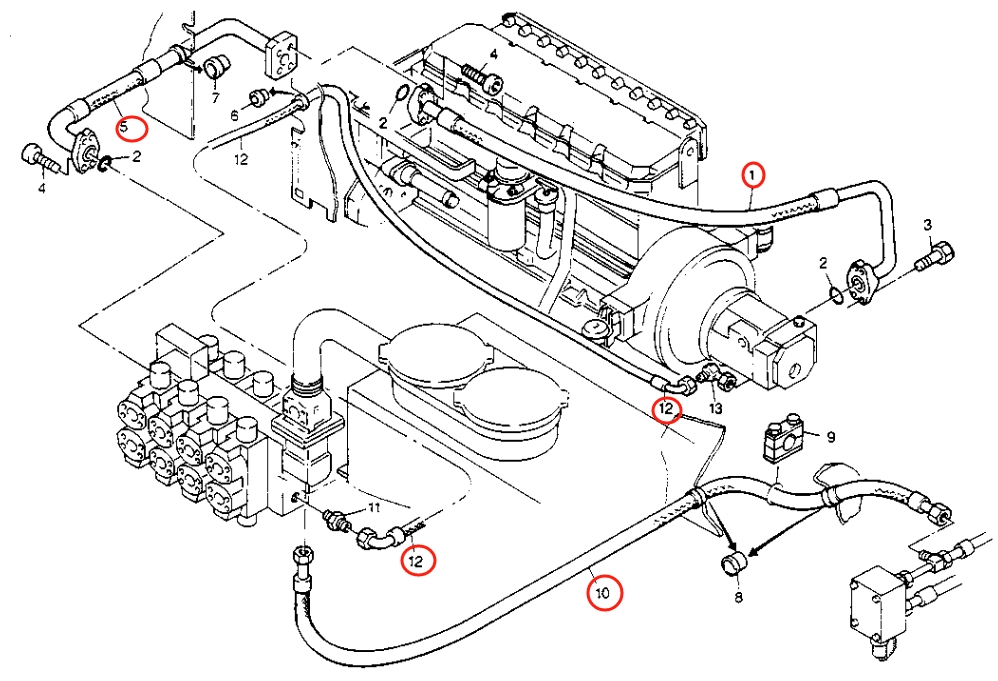

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number 8U-1059 before removing the hose.
Repair specifications
- Part number
- 8U-1059
- Diagram pipe number
- 10
- Installation route
- 分配阀左~电磁阀
- Hose specification
- DN16;2SN-10;25Mpa
- Finished length
- 1,655 mm
- Working pressure
- 25 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
