Individual hose record
4286814 Hose Repair Specifications
Excavator · Hitachi · ZX800 · Hydraulic Pump
Finished length1,050 mm
Locate this hose

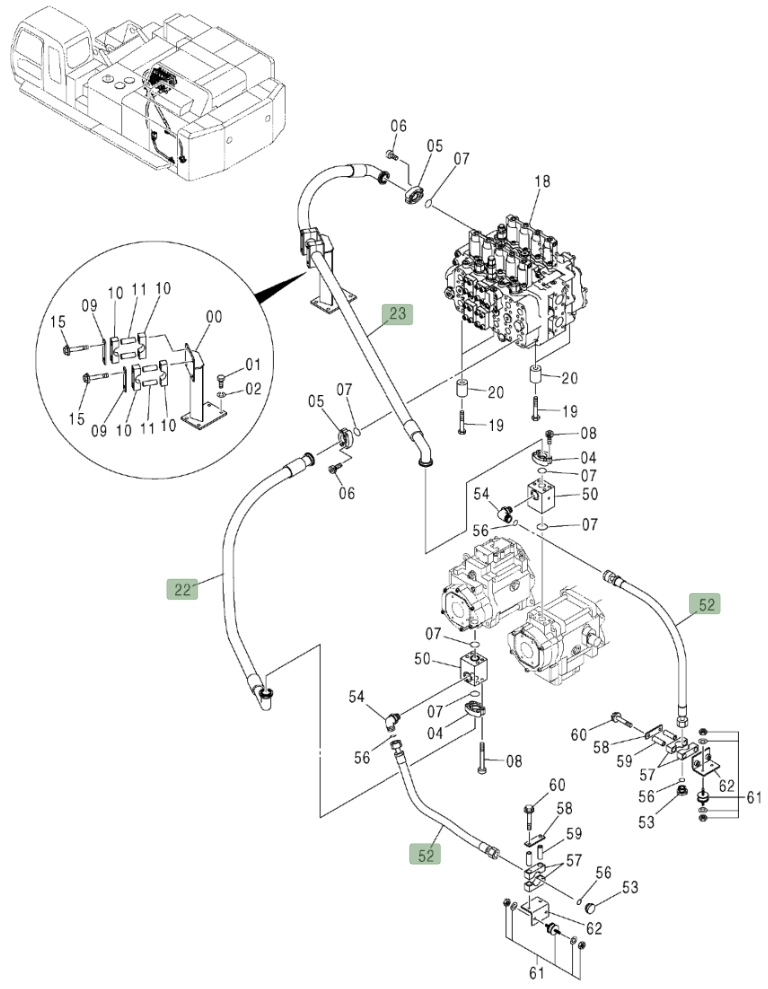

Installation diagram — Pipe No. 52
Locate Pipe No. 52 in the diagram, then confirm part number 4286814 before removing the hose.
Repair specifications
- Part number
- 4286814
- Diagram pipe number
- 52
- Installation route
- 液压泵~堵头(减震管)
- Hose specification
- DN25;4SP-16;34.5MPa
- Finished length
- 1,050 mm
- Working pressure
- 34.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
