- Length
- 1,050 mm
- Specification
- DN25;4SP-16;34.5MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Individual hose record
4441409 Hose Repair Specifications
Excavator · Hitachi · ZX800 · Hydraulic Pump
Finished length450 mm
Locate this hose

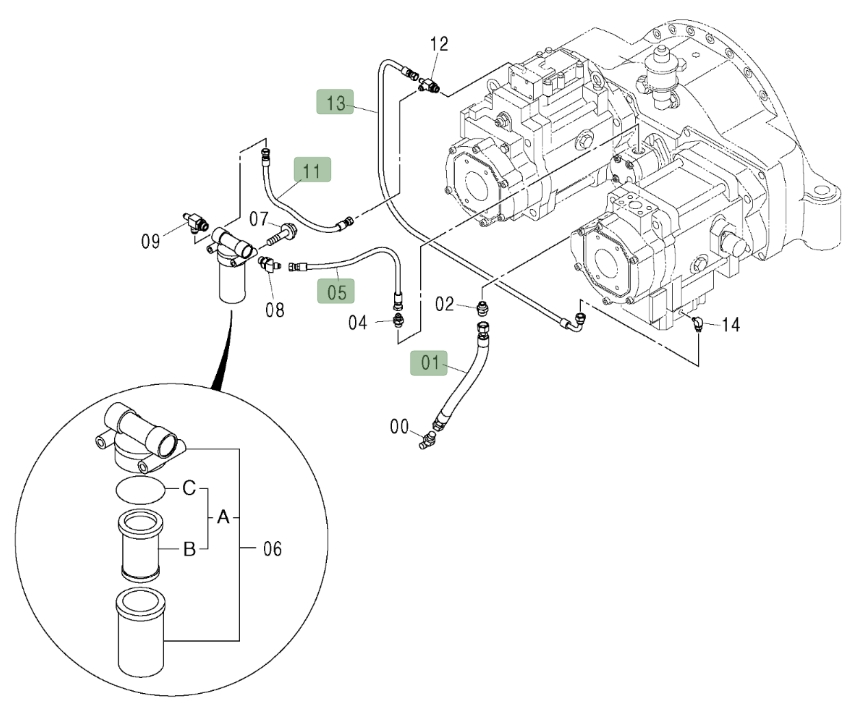

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 4441409 before removing the hose.
Repair specifications
- Part number
- 4441409
- Diagram pipe number
- 11
- Installation route
- 液压泵~先导滤芯
- Hose specification
- DN10;1SN-6;7Mpa
- Finished length
- 450 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
