Individual hose record
2V-8299 Hose Repair Specifications
Excavator · Caterpillar · CAT®215C · Attachments – Breaker
Locate this hose

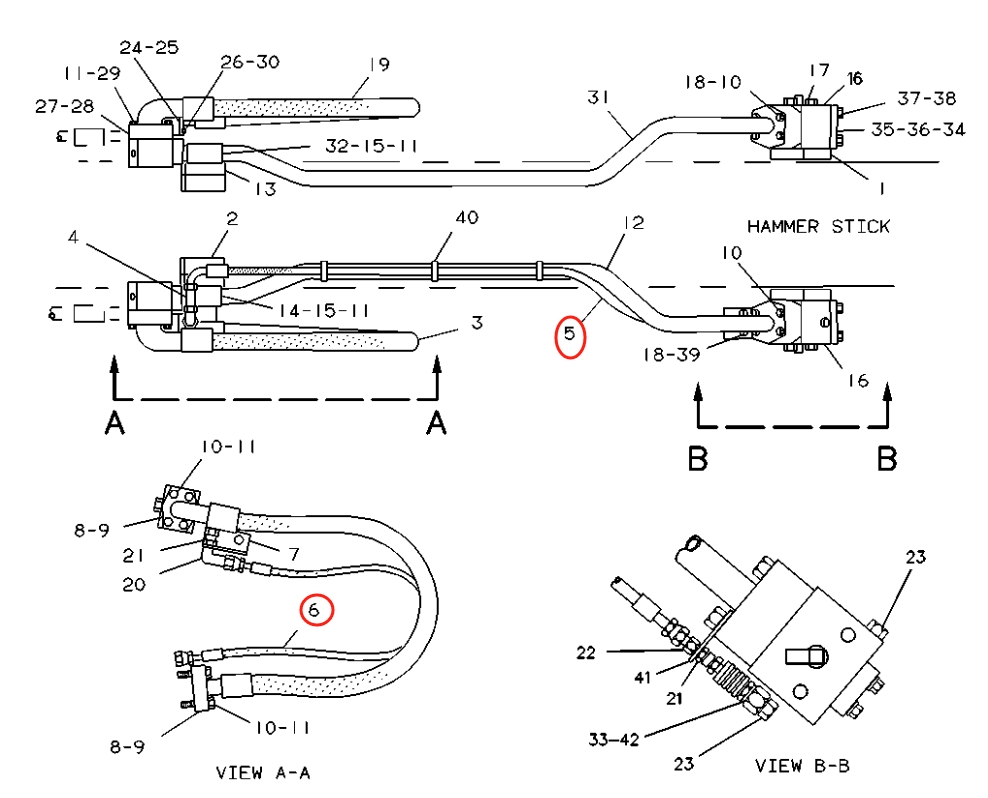

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 2V-8299 before removing the hose.
Repair specifications
- Part number
- 2V-8299
- Diagram pipe number
- 6
- Installation route
- 小臂破碎器截止阀
- Hose specification
- DN10;4SP-6;28Mpa
- Finished length
- 1,130 mm
- Working pressure
- 28 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
Workshop guide
Finding the correct hydraulic hose for Caterpillar CAT®215C Attachments – Breaker
Start with the machine and route
For Caterpillar CAT®215C Attachments – Breaker, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.
Read the dimensions before cutting
Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.
Records to compare
- 2V-82991,130 mm · DN10;4SP-6;28Mpa · 小臂破碎器截止阀
Use the drawing as a location check
Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.
For reference only. Confirm the actual hose before fabrication.
