Individual hose record
4I-6242 Hose Repair Specifications
Excavator · Caterpillar · CAT®317-A N · Attachments
Finished length2,950 mm
Locate this hose

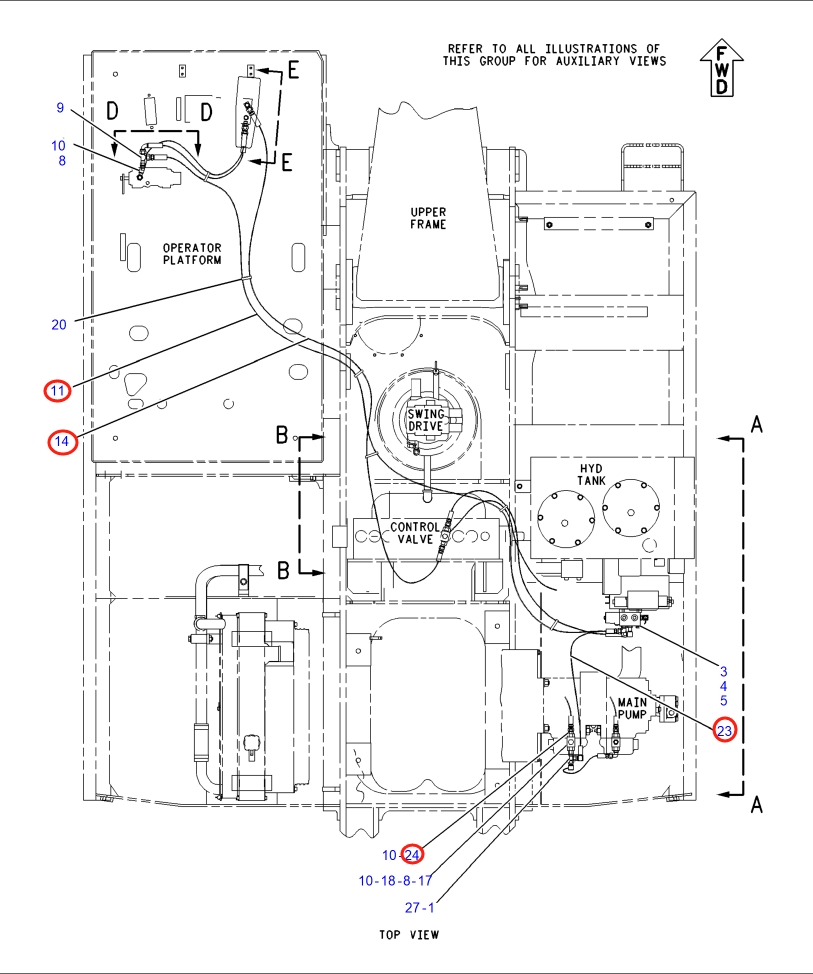

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 4I-6242 before removing the hose.
Repair specifications
- Part number
- 4I-6242
- Diagram pipe number
- 14
- Installation route
- 踏板(附加装置)~分配阀上
- Hose specification
- DN10;-6;10.3Mpa
- Finished length
- 2,950 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
