Individual hose record
107-1591 Hose Repair Specifications
Excavator · Caterpillar · CAT®317-A N · Attachments
Finished length3,500 mm
Locate this hose

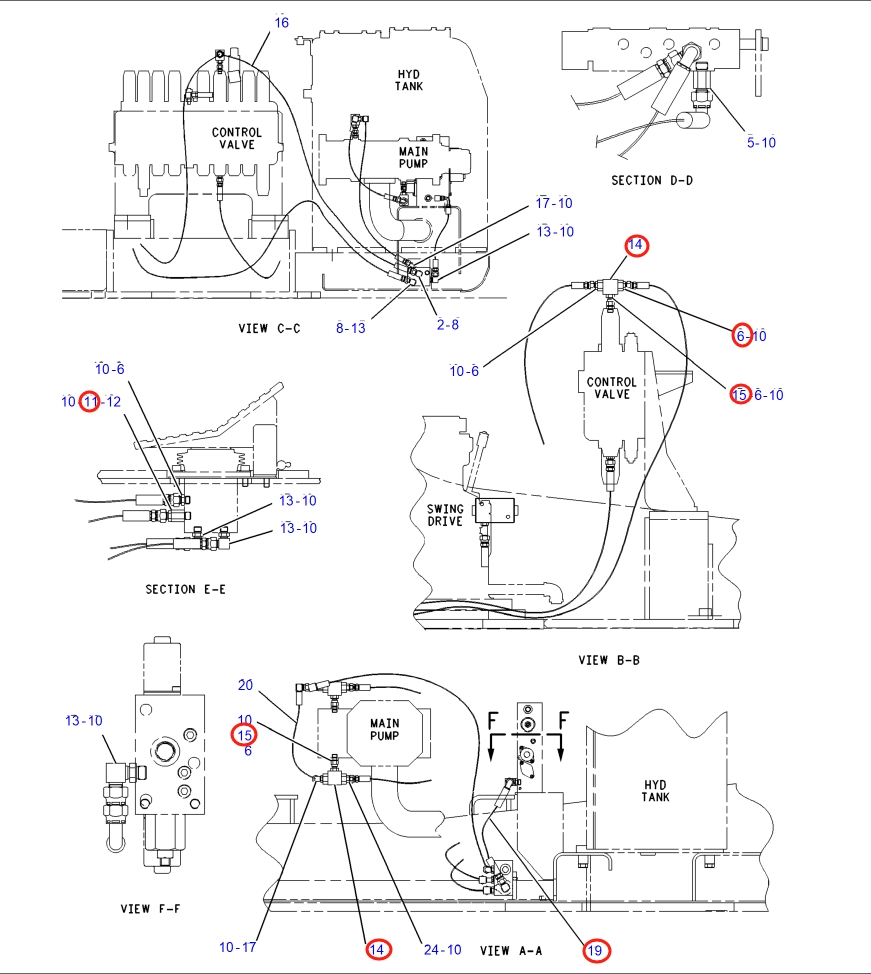

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 107-1591 before removing the hose.
Repair specifications
- Part number
- 107-1591
- Diagram pipe number
- 11
- Installation route
- 踏板(附加装置)~
- Hose specification
- DN10;-6;10.3Mpa
- Finished length
- 3,500 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
