F013316 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1910G Forwarder

Total length770 mm

Hose drawing

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

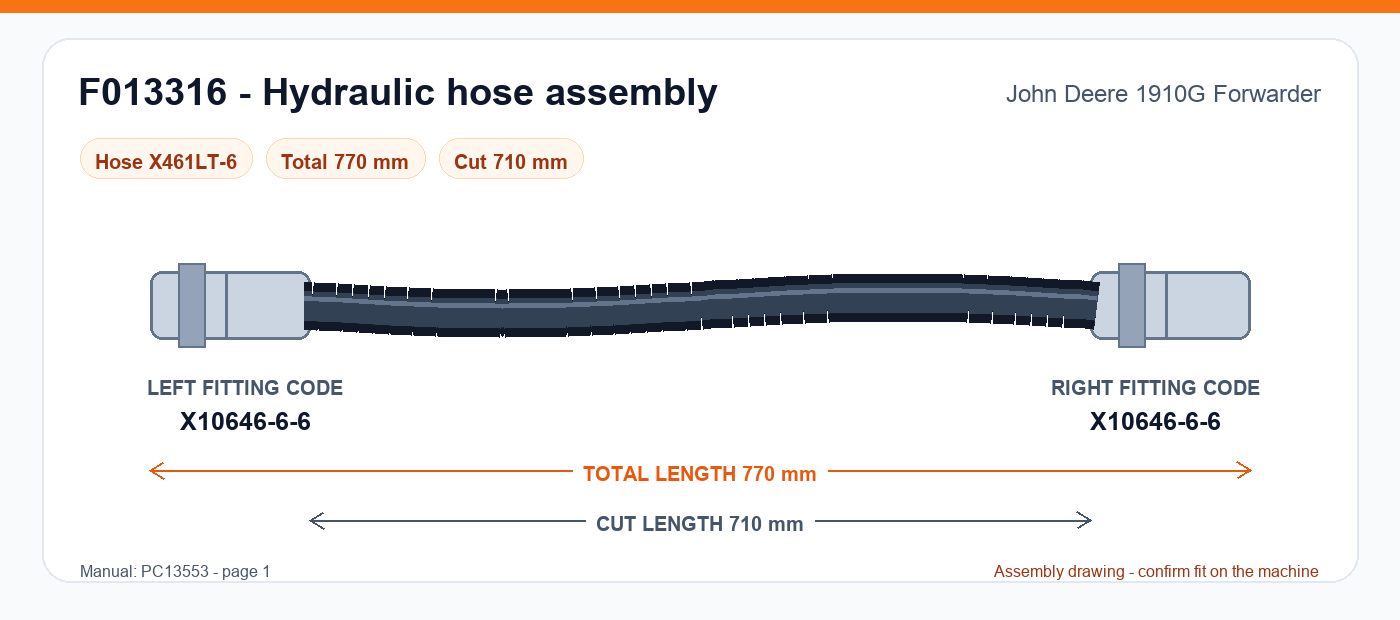

F013316 hydraulic hose assembly drawing for John Deere 1910G Forwarder - 770 mm total length, left fitting X10646-6-6, right fitting X10646-6-6 — F013316 - 770 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1910G Forwarder
Part number: F013316
Hose type: X461LT-6
Total length: 770 mm
Cut length: 710 mm
Left-end hydraulic fitting code: X10646-6-6Look up this code
Right-end hydraulic fitting code: X10646-6-6Look up this code
Manual reference: PC13553, page 1

Hose assembly details

Part number: F013316
Hose type: X461LT-6
Total length: 770 mm
Cut length: 710 mm
Left fitting code: X10646-6-6
Right fitting code: X10646-6-6
Application: 1910G Forwarder: Stage V / Tier 4, Fixed Cabin
Manual page: 1

Download manual

Same machine

More hoses for this machine

Manual page 3

F689885

Application: 1910G Forwarder: Stage V / Tier 4, Fixed Cabin

Length: 3,200 mm
Cut length: 3,118 mm
Specification: X461LT-12
Left fitting: X10646-12-12
Right fitting: X10646-12-12

View hose specifications

Manual page 1

F046791

Application: 1910G Forwarder: Stage V / Tier 4, Fixed Cabin

Length: 650 mm
Cut length: 590 mm
Specification: X461LT-6
Left fitting: X10646-6-6
Right fitting: X10646-6-6

View hose specifications

Manual page 1

F046347

Application: 1910G Forwarder: Stage V / Tier 4, Fixed Cabin

Length: 3,400 mm
Cut length: 3,330 mm
Specification: X371LT-8
Left fitting: X10670-10-8-SM
Right fitting: X10670-10-8-SM

View hose specifications

Manual page 1

F027328

Application: 1910G Forwarder: Stage V / Tier 4, Fixed Cabin

Length: 1,800 mm
Cut length: 1,738 mm
Specification: X461LT-4
Left fitting: X10646-6-4
Right fitting: X10646-6-4

View hose specifications

Manual page 2

F075554

Application: 1910G Forwarder: Stage V / Tier 4, Fixed Cabin

Length: 1,000 mm
Cut length: 939 mm
Specification: X461LT-4
Left fitting: X16846-5-4
Right fitting: X10646-6-4

View hose specifications

Manual page 2

F056626

Application: 1910G Forwarder: Stage V / Tier 4, Fixed Cabin

Length: 1,230 mm
Cut length: 1,135 mm
Specification: X461LT-12
Left fitting: X13946-12-12
Right fitting: X10646-12-12

View hose specifications

Manual page 1

F046341

Application: 1910G Forwarder: Stage V / Tier 4, Fixed Cabin

Length: 1,400 mm
Cut length: 1,338 mm
Specification: X461LT-4
Left fitting: X10646-6-4
Right fitting: X10646-6-4

View hose specifications

Manual page 2

F057809

Application: 1910G Forwarder: Stage V / Tier 4, Fixed Cabin

Length: 800 mm
Cut length: 731 mm
Specification: X461LT-6
Left fitting: X13W46-8-6
Right fitting: X16846-8-6

View hose specifications

For reference only. Confirm the actual hose before fabrication.
