Individual hose record

8K-4790 Hose Repair Specifications

Excavator · Caterpillar · CAT®235 · Swivel Joint

Finished length1,665 mm

Locate this hose

Installation diagram — Pipe No. 30

Locate Pipe No. 30 in the diagram, then confirm part number 8K-4790 before removing the hose.

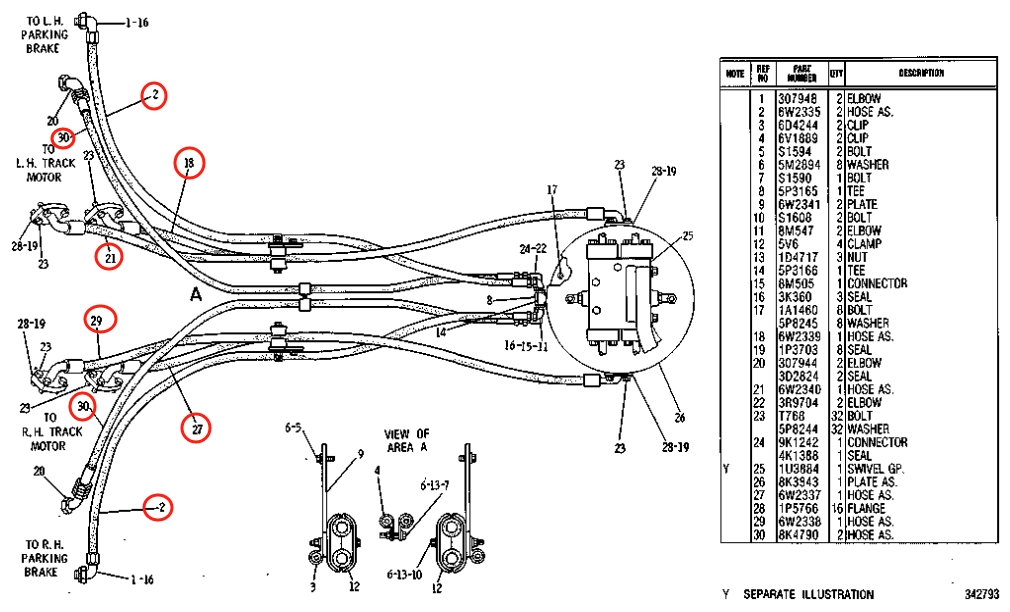

Caterpillar CAT®235 installation diagram showing hydraulic hose 8K-4790 at Pipe No. 30 — Caterpillar CAT®235Part 8K-4790 · Pipe No. 30Open full-size diagram

Repair specifications

Part number: 8K-4790
Diagram pipe number: 30
Installation route: 回转接头~行走马达(规格3)
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 1,665 mm
Working pressure: 8.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 30

8V-8646

Installation route: 回转接头~行走马达(规格2)

Length: 1,395 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
