Individual hose record
337-2696 Hose Repair Specifications
Excavator · Caterpillar · CAT®318F · Attachments
Finished length1,480 mm
Locate this hose

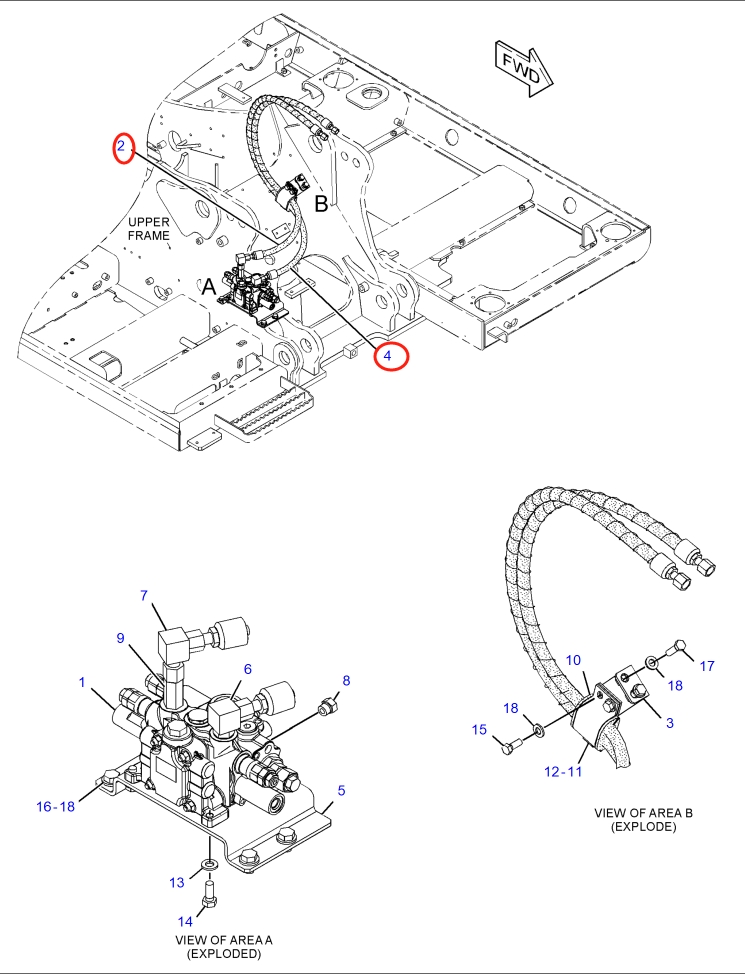

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 337-2696 before removing the hose.
Repair specifications
- Part number
- 337-2696
- Diagram pipe number
- 2
- Installation route
- 大臂(附加装置)~控制阀(回转接头右)
- Hose specification
- DN13;4SP-8;28Mpa
- Finished length
- 1,480 mm
- Working pressure
- 28 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
