Individual hose record
197-2299 Hose Repair Specifications
Excavator · Caterpillar · CAT®318F · Attachments
Finished length1,220 mm
Locate this hose

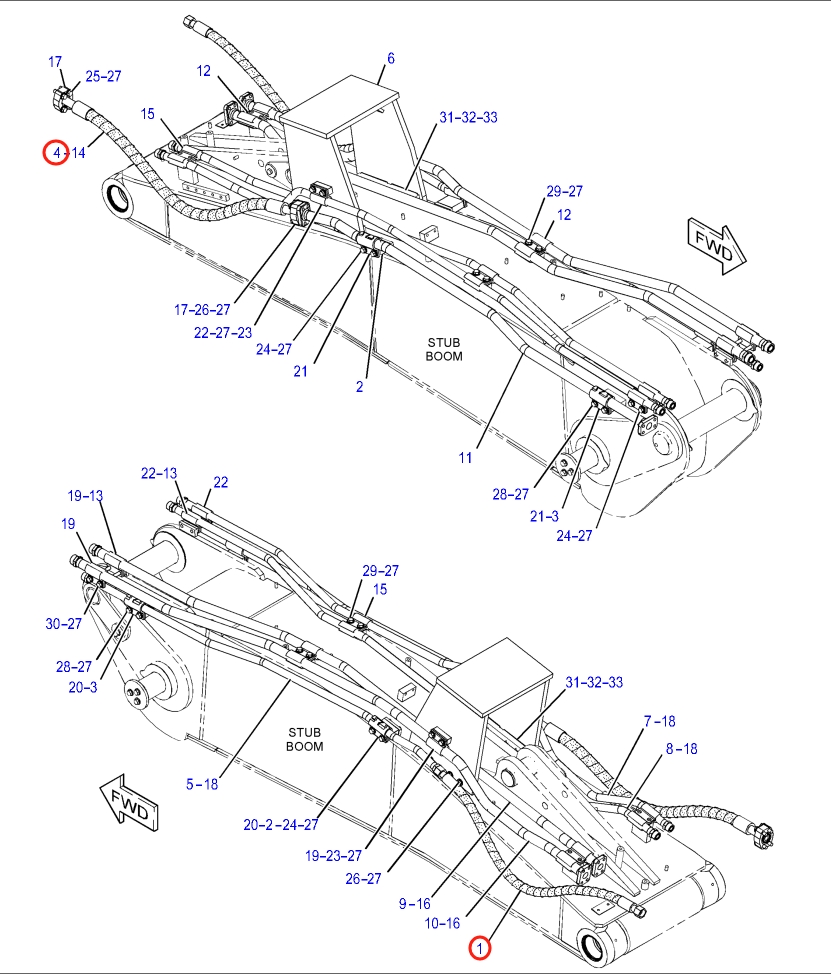

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 197-2299 before removing the hose.
Repair specifications
- Part number
- 197-2299
- Diagram pipe number
- 1
- Installation route
- 大臂(附加装置)~分配阀前
- Hose specification
- DN19;6SH-12;42Mpa
- Finished length
- 1,220 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
