Individual hose record

2184-1100D237 Hose Repair Specifications

Excavator · Doosan · DX140LC · Boom Assembly

Finished length1,350 mm

Locate this hose

Installation diagram — Pipe No. 21

Locate Pipe No. 21 in the diagram, then confirm part number 2184-1100D237 before removing the hose.

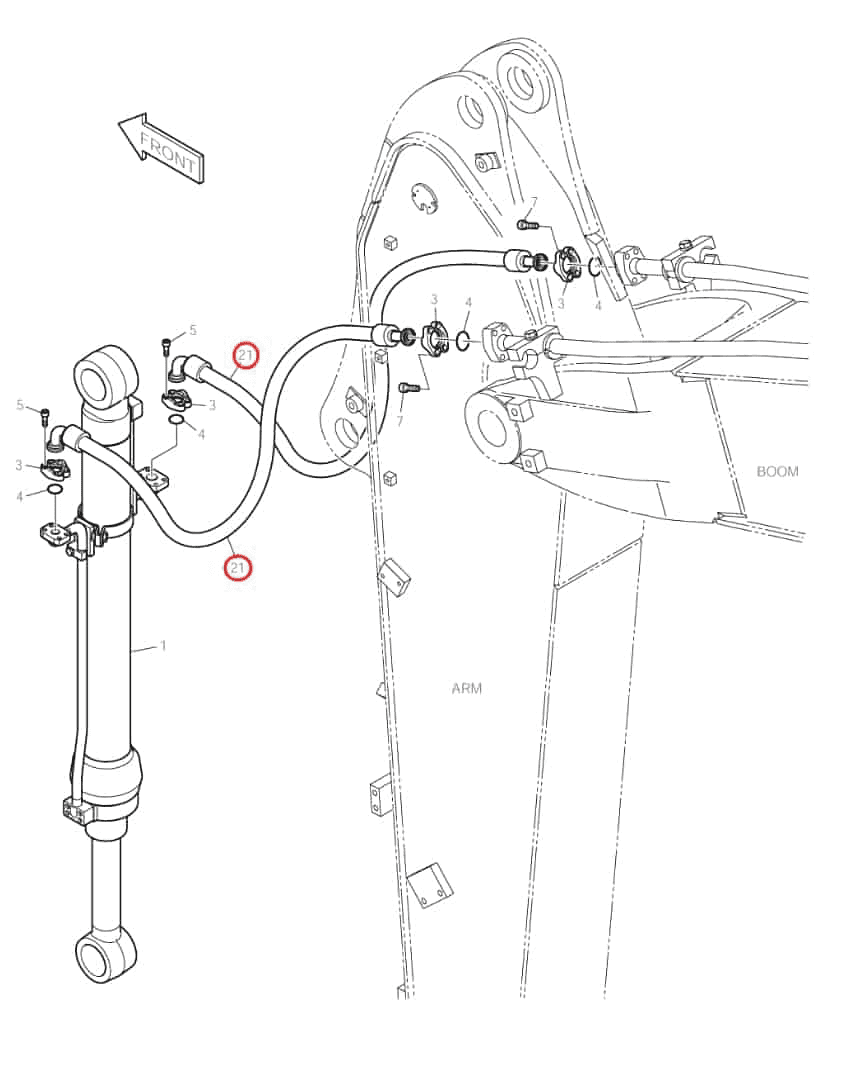

Doosan DX140LC installation diagram showing hydraulic hose 2184-1100D237 at Pipe No. 21 — **Doosan DX140LC**Part 2184-1100D237 · Pipe No. 21Open full-size diagram

Repair specifications

Part number: 2184-1100D237
Diagram pipe number: 21
Installation route: Bucket cylinderOriginal Chinese: 铲斗油缸
Hose specification: DN19;4SH-12;42MPa
Finished length: 1,350 mm
Working pressure: 42 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: 90° heavy-series flangeOriginal Chinese: 90°法兰-重型
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 10

DS2040643

Installation route: Arm cylinder — leftOriginal Chinese: 小臂油缸左

Length: 720 mm
Specification: DN19;4SH-12;42MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: 90° light-series flangeOriginal Chinese: 90°法兰-轻型

View full repair specifications

Diagram Pipe No. 2

DS2013318

Installation route: 大臂左1/左4~分配阀B5/B7口

Length: 1,100 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

DS2016061

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 700 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型

View full repair specifications

Diagram Pipe No. 1

DS2013318

Installation route: 大臂左1/左3~分配阀B5/B7口

Length: 1,100 mm
Specification: DN19;4SH-12;42MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封

View full repair specifications
