Individual hose record

DS2016061 Hose Repair Specifications

Excavator · Doosan · DX140LC · Boom Assembly

Finished length700 mm

Locate this hose

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number DS2016061 before removing the hose.

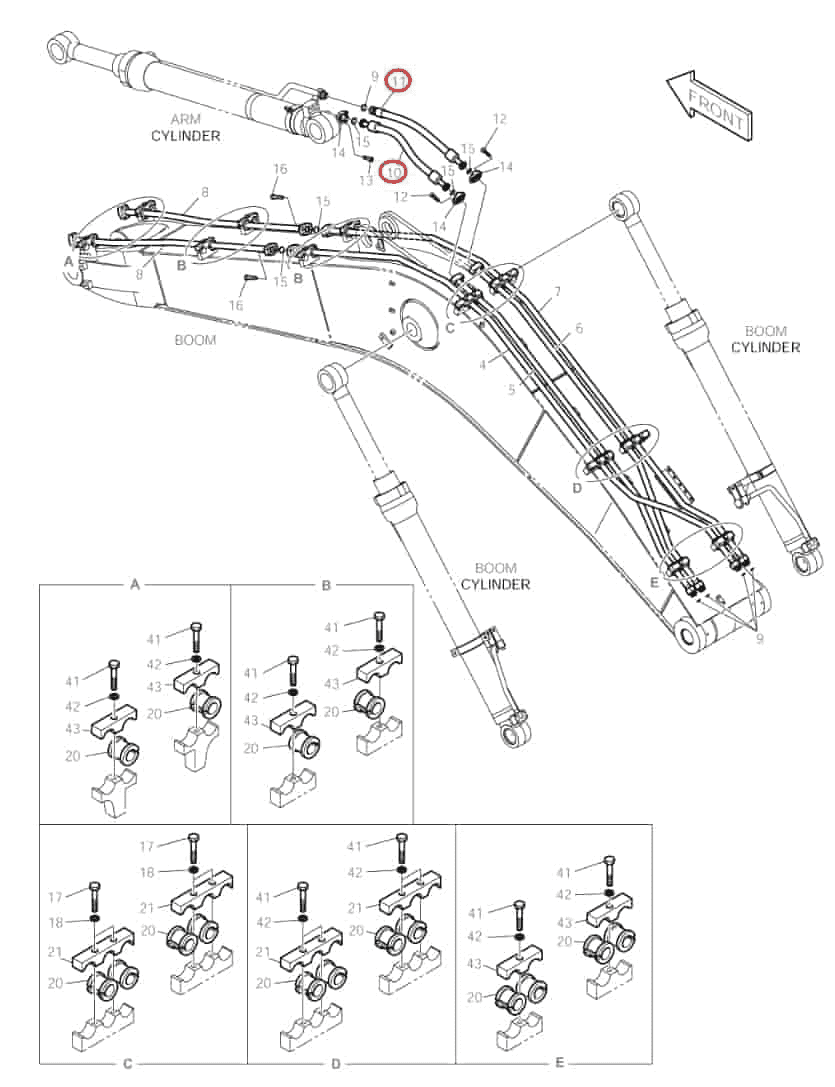

Doosan DX140LC installation diagram showing hydraulic hose DS2016061 at Pipe No. 11
Doosan DX140LCPart DS2016061 · Pipe No. 11Open full-size diagram

Repair specifications

Part number
DS2016061
Diagram pipe number
11
Installation route
Arm cylinder — rightOriginal Chinese: 小臂油缸右
Hose specification
DN19;4SH-12;42MPa
Finished length
700 mm
Working pressure
42 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
Light-series flangeOriginal Chinese: 法兰-轻型
Quantity
1
