2V-0577 Hose Repair Specifications

Excavator · Caterpillar · CAT®235B · Boom Assembly

Finished length2,464 mm

Locate this hose

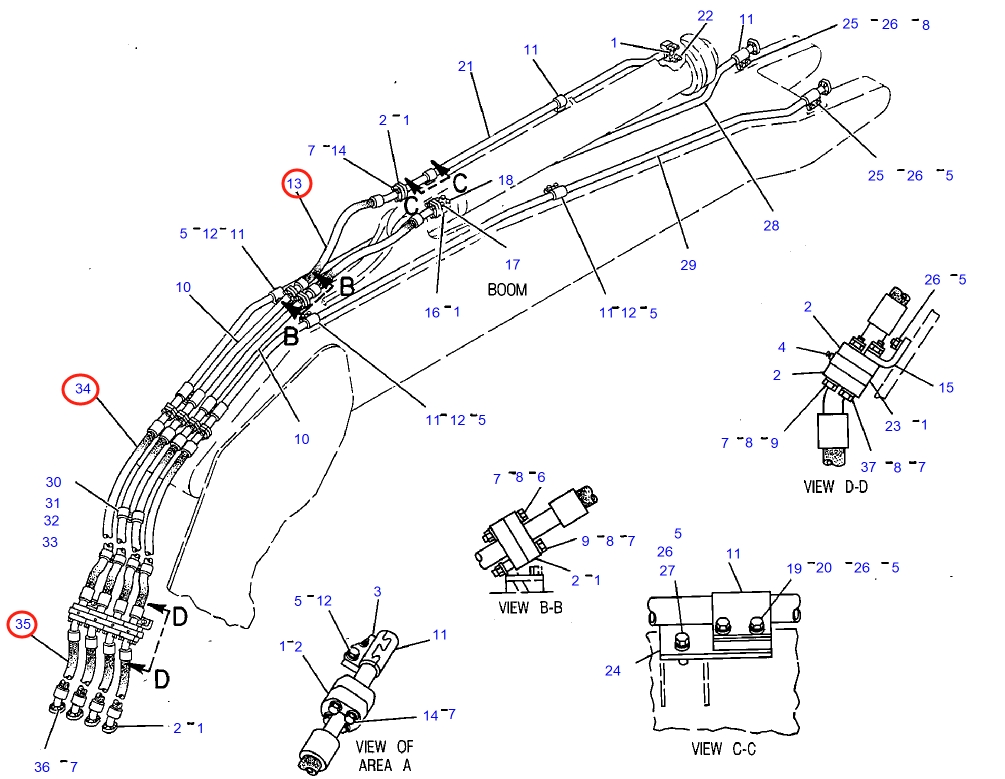

Installation diagram — Pipe No. 34

Locate Pipe No. 34 in the diagram, then confirm part number 2V-0577 before removing the hose.

Caterpillar CAT®235B installation diagram showing hydraulic hose 2V-0577 at Pipe No. 34 — Caterpillar CAT®235BPart 2V-0577 · Pipe No. 34Open full-size diagram

Repair specifications

Part number: 2V-0577
Diagram pipe number: 34
Installation route: 大臂左1/左2/左3/左4(前段)
Hose specification: DN32;4SP-20;35Mpa
Finished length: 2,464 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 4

Same system

Related Hoses

Diagram Pipe No. 19

8V-6563

Installation route: 铲斗油缸(规格3)

Length: 2,025 mm
Specification: DN32;4SP-20;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 2

6W-6388

Installation route: 小臂油缸左(规格2)

Length: 1,290 mm
Specification: DN32;4SP-20;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 19

6W-6472

Installation route: 铲斗油缸(规格2)

Length: 1,735 mm
Specification: DN32;4SP-20;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
