Individual hose record

6W-6388 Hose Repair Specifications

Excavator · Caterpillar · CAT®235B · Boom Assembly

Finished length1,290 mm

Locate this hose

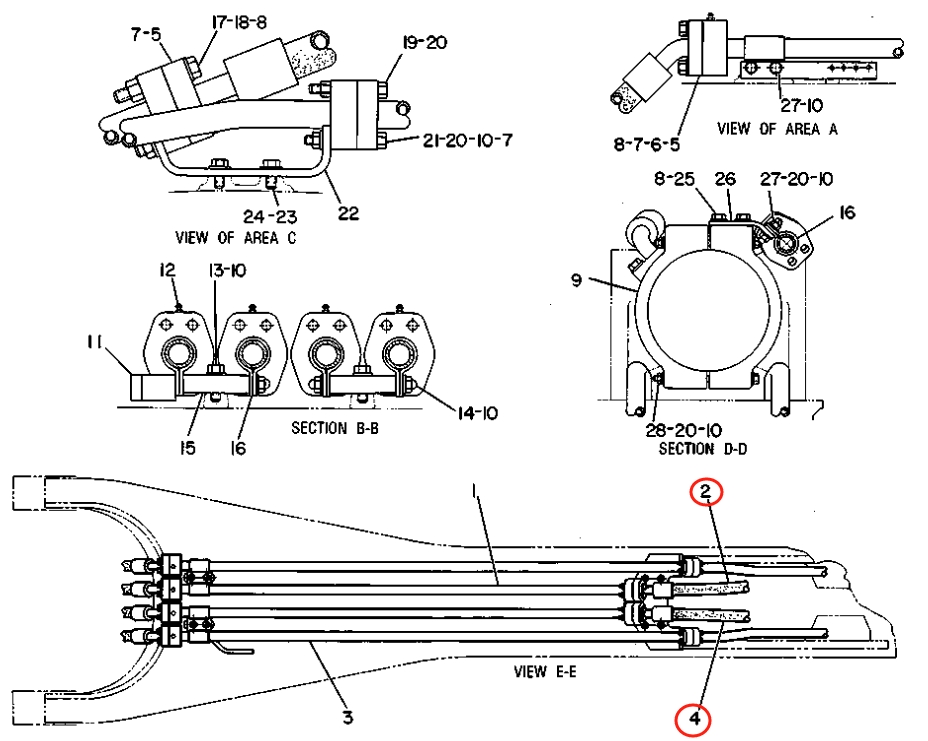

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 6W-6388 before removing the hose.

Caterpillar CAT®235B installation diagram showing hydraulic hose 6W-6388 at Pipe No. 2 — Caterpillar CAT®235BPart 6W-6388 · Pipe No. 2Open full-size diagram

Repair specifications

Part number: 6W-6388
Diagram pipe number: 2
Installation route: 小臂油缸左(规格2)
Hose specification: DN32;4SP-20;35Mpa
Finished length: 1,290 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 34

2V-0577

Installation route: 大臂左1/左2/左3/左4(前段)

Length: 2,464 mm
Specification: DN32;4SP-20;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 19

8V-6563

Installation route: 铲斗油缸(规格3)

Length: 2,025 mm
Specification: DN32;4SP-20;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 19

6W-6472

Installation route: 铲斗油缸(规格2)

Length: 1,735 mm
Specification: DN32;4SP-20;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
