4436352 Hose Repair Specifications

Excavator · Hitachi · ZX120 · Attachments – Quick Coupler

Finished length600 mm

Locate this hose

Installation diagram — Pipe No. 44

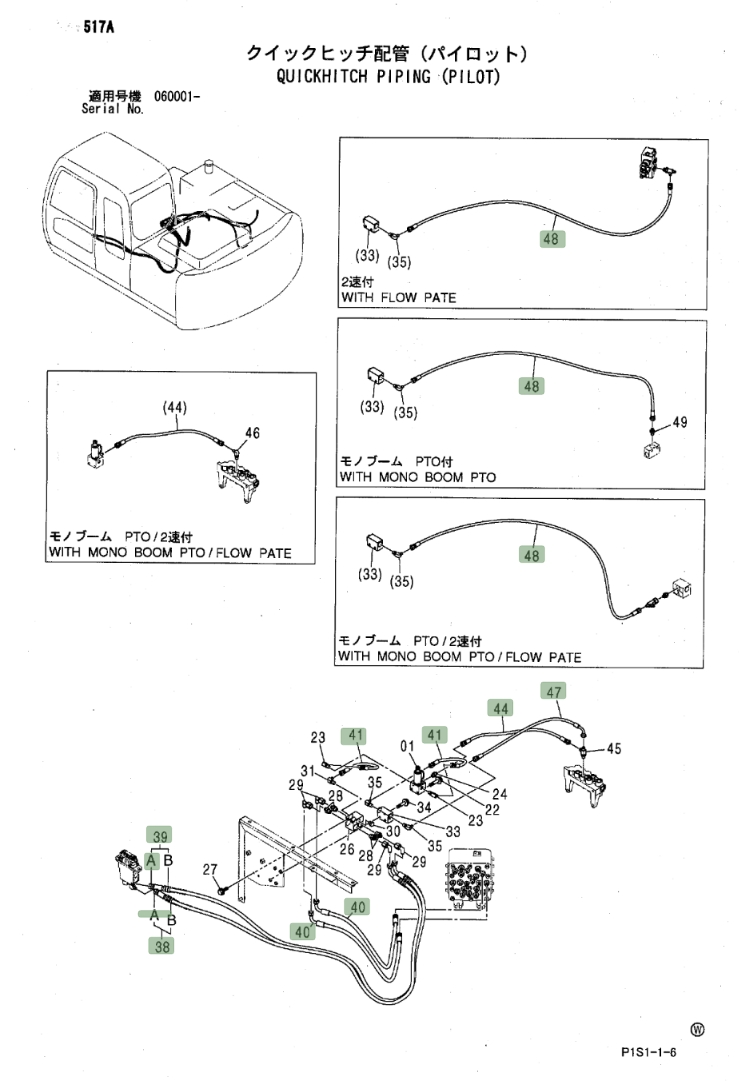

Locate Pipe No. 44 in the diagram, then confirm part number 4436352 before removing the hose.

Hitachi ZX120 installation diagram showing hydraulic hose 4436352 at Pipe No. 44 — Hitachi ZX120Part 4436352 · Pipe No. 44Open full-size diagram

Repair specifications

Part number: 4436352
Diagram pipe number: 44
Installation route: 电磁阀~电磁阀(快换)
Hose specification: DN6;1SN-4;7Mpa
Finished length: 600 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

4601514

Installation route: 大臂(快换)~小臂(快换)

Length: 1,900 mm
Specification: DN10;2SN-06;34.5MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 41

4452733

Installation route: 中转接头~过渡阀块(快换)

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 48

4392192

Installation route: 流速切换阀~过渡阀块(快换)

Length: 1,500 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 41

4452733

Installation route: 电磁阀(快换)~过渡阀块(快换)

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
