Individual hose record

4601514 Hose Repair Specifications

Excavator · Hitachi · ZX120 · Attachments – Quick Coupler

Finished length1,900 mm

Locate this hose

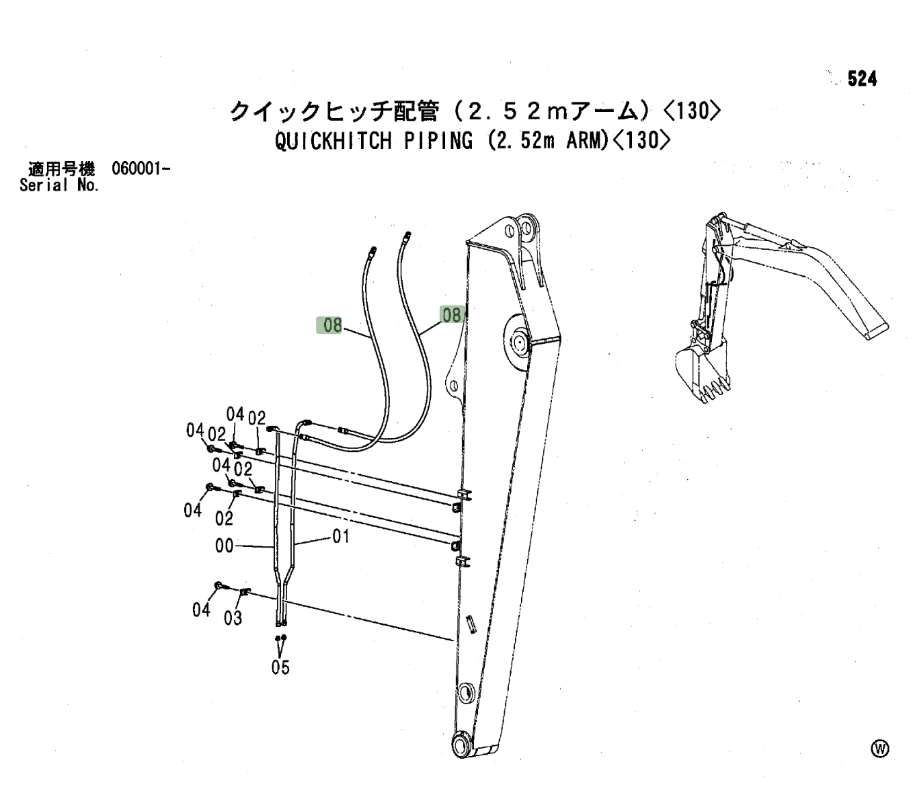

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 4601514 before removing the hose.

Hitachi ZX120 installation diagram showing hydraulic hose 4601514 at Pipe No. 8 — Hitachi ZX120Part 4601514 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 4601514
Diagram pipe number: 8
Installation route: 大臂(快换)~小臂(快换)
Hose specification: DN10;2SN-06;34.5MPa
Finished length: 1,900 mm
Working pressure: 34.5 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 44

4436352

Installation route: 电磁阀~电磁阀(快换)

Length: 600 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 41

4452733

Installation route: 中转接头~过渡阀块(快换)

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 48

4392192

Installation route: 流速切换阀~过渡阀块(快换)

Length: 1,500 mm
Specification: DN6;1SN-4;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 41

4452733

Installation route: 电磁阀(快换)~过渡阀块(快换)

Length: 450 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: 美制内螺纹74°内锥
Right fitting: 美制内螺纹74°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
