5C-2584 Hose Repair Specifications

Excavator · Caterpillar · CAT®215B · Hydraulic Tank

Finished length975 mm

Locate this hose

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 5C-2584 before removing the hose.

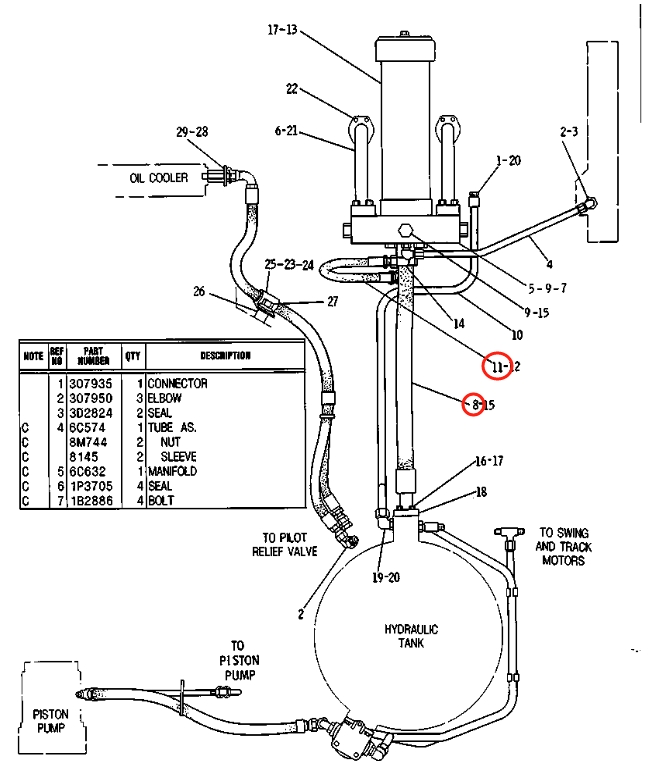

Caterpillar CAT®215B installation diagram showing hydraulic hose 5C-2584 at Pipe No. 8 — Caterpillar CAT®215BPart 5C-2584 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 5C-2584
Diagram pipe number: 8
Installation route: 液压油箱~液压油过滤器
Hose specification: DN38;4SP-24;17.5Mpa
Finished length: 975 mm
Working pressure: 17.5 MPa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Quantity: 1
