Individual hose record

5C-4391 Hose Repair Specifications

Excavator · Caterpillar · CAT®215B · Hydraulic Tank

Finished length670 mm

Locate this hose

Installation diagram — Pipe No. 17

Locate Pipe No. 17 in the diagram, then confirm part number 5C-4391 before removing the hose.

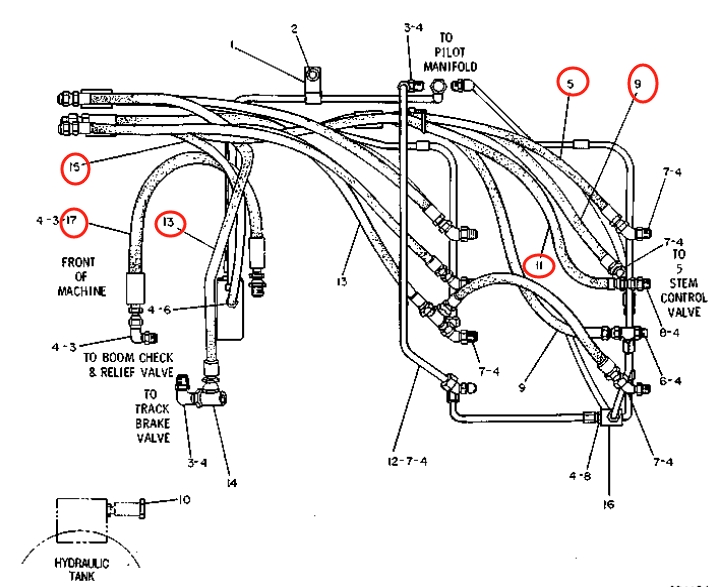

Caterpillar CAT®215B installation diagram showing hydraulic hose 5C-4391 at Pipe No. 17 — Caterpillar CAT®215BPart 5C-4391 · Pipe No. 17Open full-size diagram

Repair specifications

Part number: 5C-4391
Diagram pipe number: 17
Installation route: 液压油过滤器~回油阀块
Hose specification: DN10;4SP-6;28Mpa
Finished length: 670 mm
Working pressure: 28 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

5C-2584

Installation route: 液压油箱~液压油过滤器

Length: 975 mm
Specification: DN38;4SP-24;17.5Mpa
Left fitting: Light-series flangeOriginal Chinese: 法兰-轻型
Right fitting: Light-series flangeOriginal Chinese: 法兰-轻型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
