Individual hose record

DS2011784 Hose Repair Specifications

Excavator · Doosan · DX80R · Boom Assembly

Finished length630 mm

Locate this hose

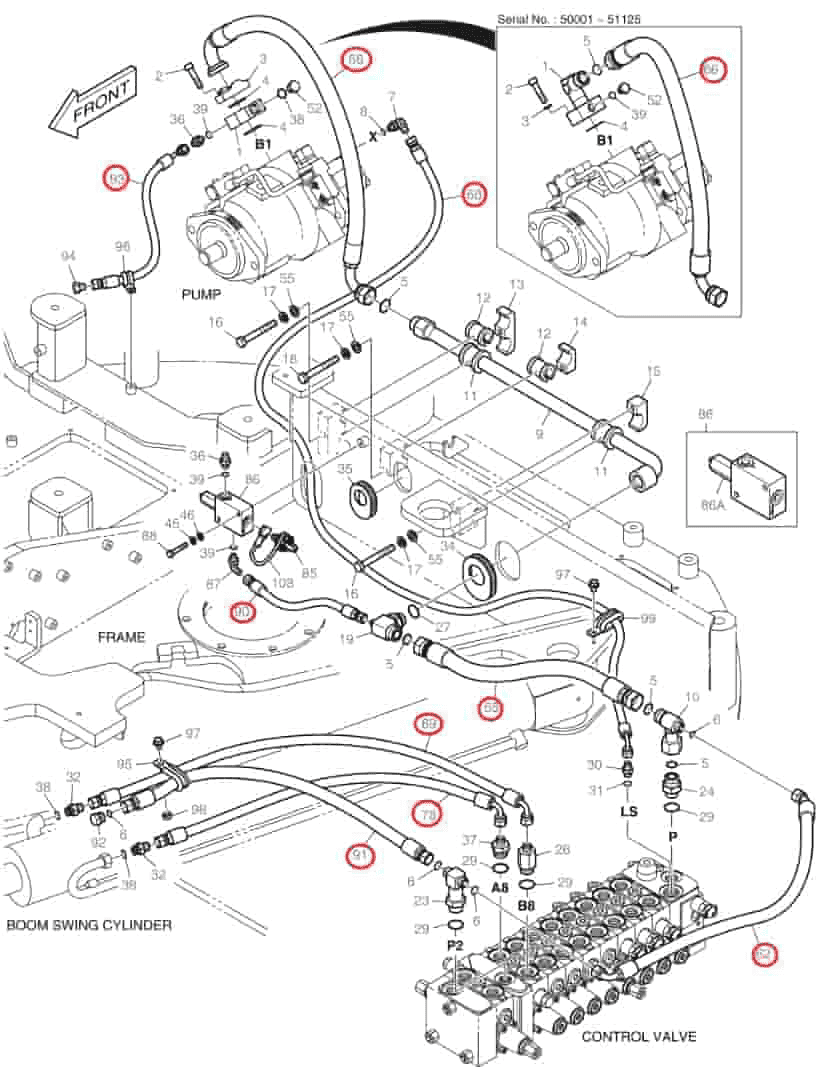

Installation diagram — Pipe No. 91

Locate Pipe No. 91 in the diagram, then confirm part number DS2011784 before removing the hose.

Part number: DS2011784
Diagram pipe number: 91
Installation route: 大臂摆动油缸~分配阀P2口
Hose specification: DN13;4SP-08;41.5MPa
Finished length: 630 mm
Working pressure: 41.5 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 8

Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右

Length: 720 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
