Individual hose record

DS2053831 Hose Repair Specifications

Excavator · Doosan · DX80R · Boom Assembly

Finished length720 mm

Locate this hose

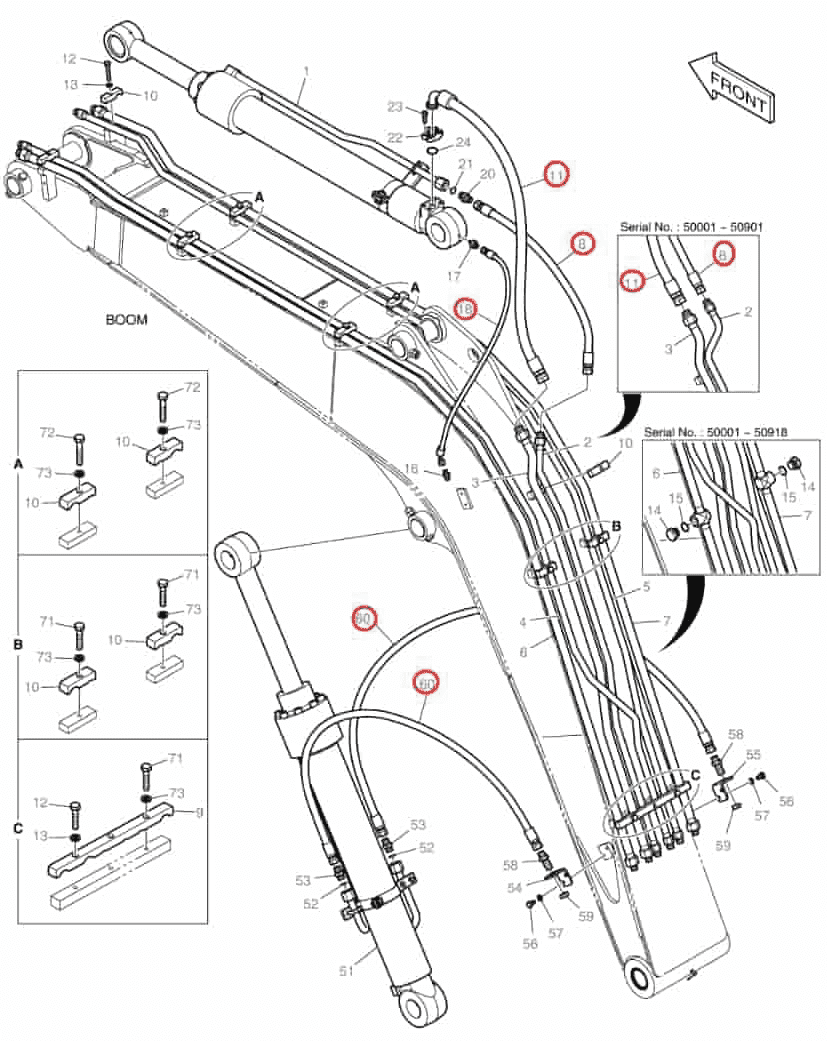

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number DS2053831 before removing the hose.

Doosan DX80R installation diagram showing hydraulic hose DS2053831 at Pipe No. 8 — **Doosan DX80R**Part DS2053831 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: DS2053831
Diagram pipe number: 8
Installation route: Arm cylinder — rightOriginal Chinese: 小臂油缸右
Hose specification: DN13;4SP-08;41.5MPa
Finished length: 720 mm
Working pressure: 41.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 91

DS2011784

Installation route: 大臂摆动油缸~分配阀P2口

Length: 630 mm
Specification: DN13;4SP-08;41.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications
