Individual hose record

033-2159 Hose Repair Specifications

Excavator · Caterpillar · CAT®235 · Attachments – Lock Valve

Finished length368 mm

Locate this hose

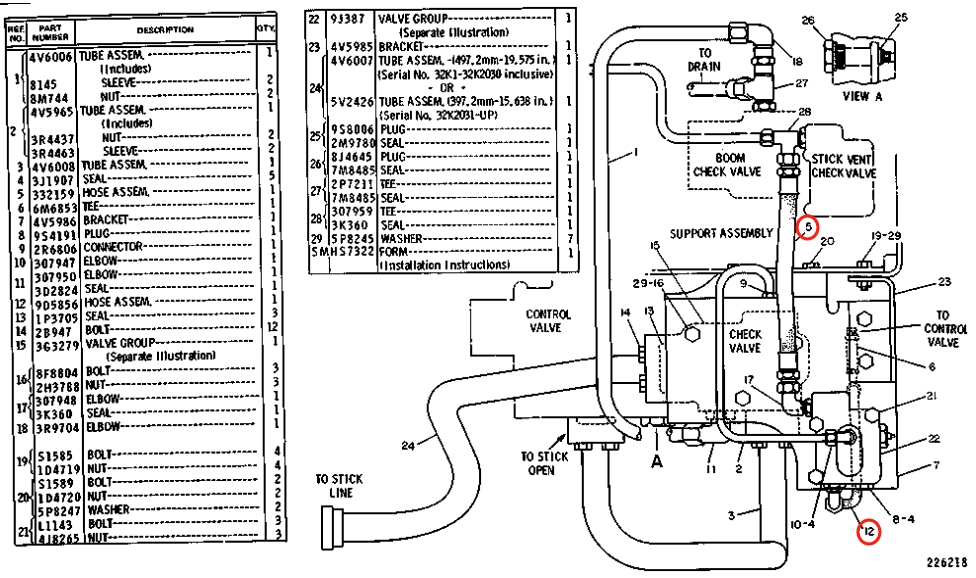

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 033-2159 before removing the hose.

Caterpillar CAT®235 installation diagram showing hydraulic hose 033-2159 at Pipe No. 5 — Caterpillar CAT®235Part 033-2159 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 033-2159
Diagram pipe number: 5
Installation route: 过渡阀块(分配阀上)~控制阀(分配阀后)
Hose specification: DN13;1SN-8;14Mpa
Finished length: 368 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
