Individual hose record
2G-4562 Hose Repair Specifications
Excavator · Caterpillar · CAT®245 · Fuel Lines
Finished length636 mm
Locate this hose

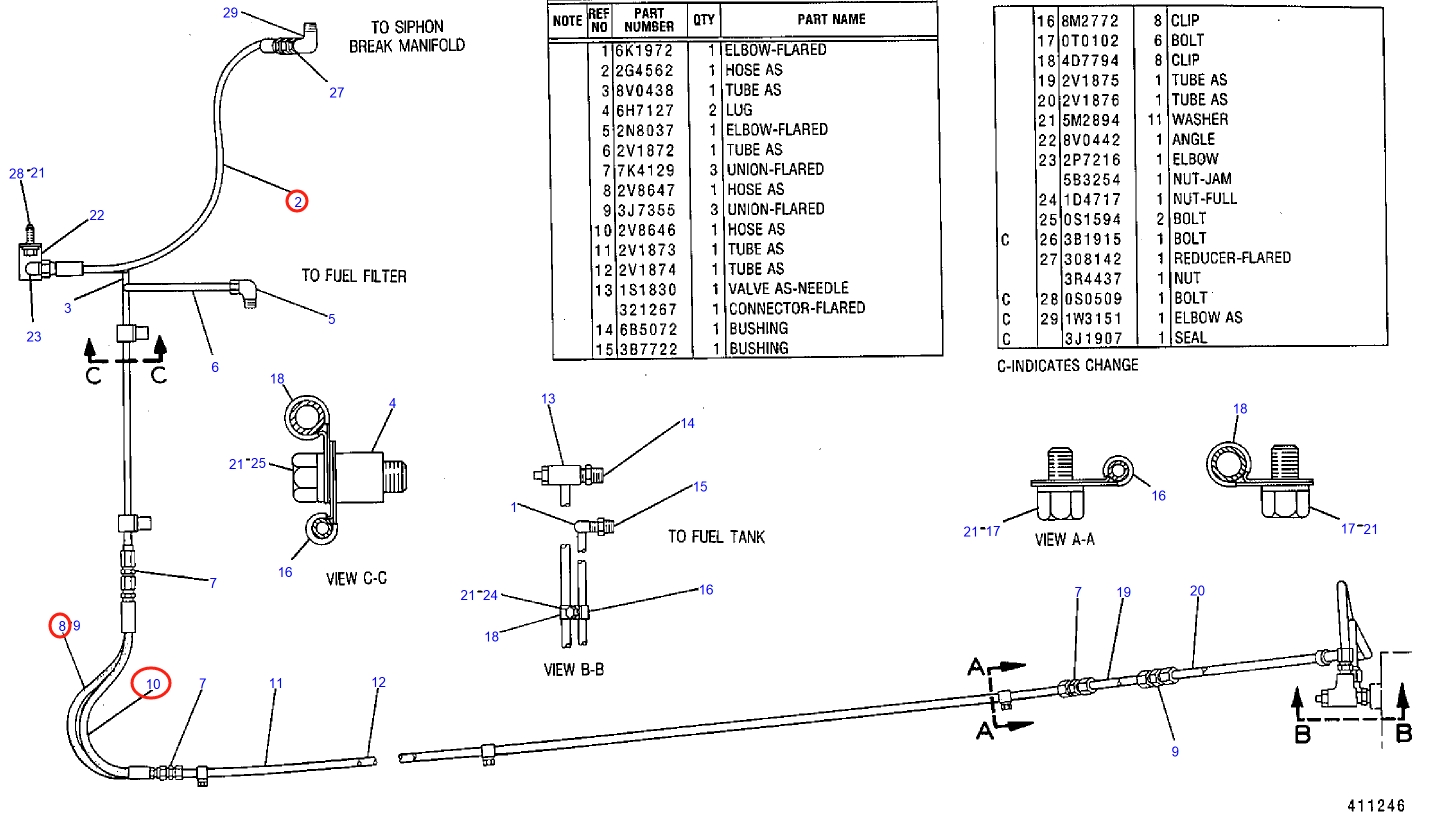

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 2G-4562 before removing the hose.
Repair specifications
- Part number
- 2G-4562
- Diagram pipe number
- 2
- Installation route
- 虹吸式歧管(发动机)
- Hose specification
- DN6;-4;10.3Mpa
- Finished length
- 636 mm
- Working pressure
- 10.3 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
