Individual hose record

9N-3370 Hose Repair Specifications

Excavator · Caterpillar · CAT®245 · Fuel Lines

Finished length260 mm

Locate this hose

Installation diagram — Pipe No. 16

Locate Pipe No. 16 in the diagram, then confirm part number 9N-3370 before removing the hose.

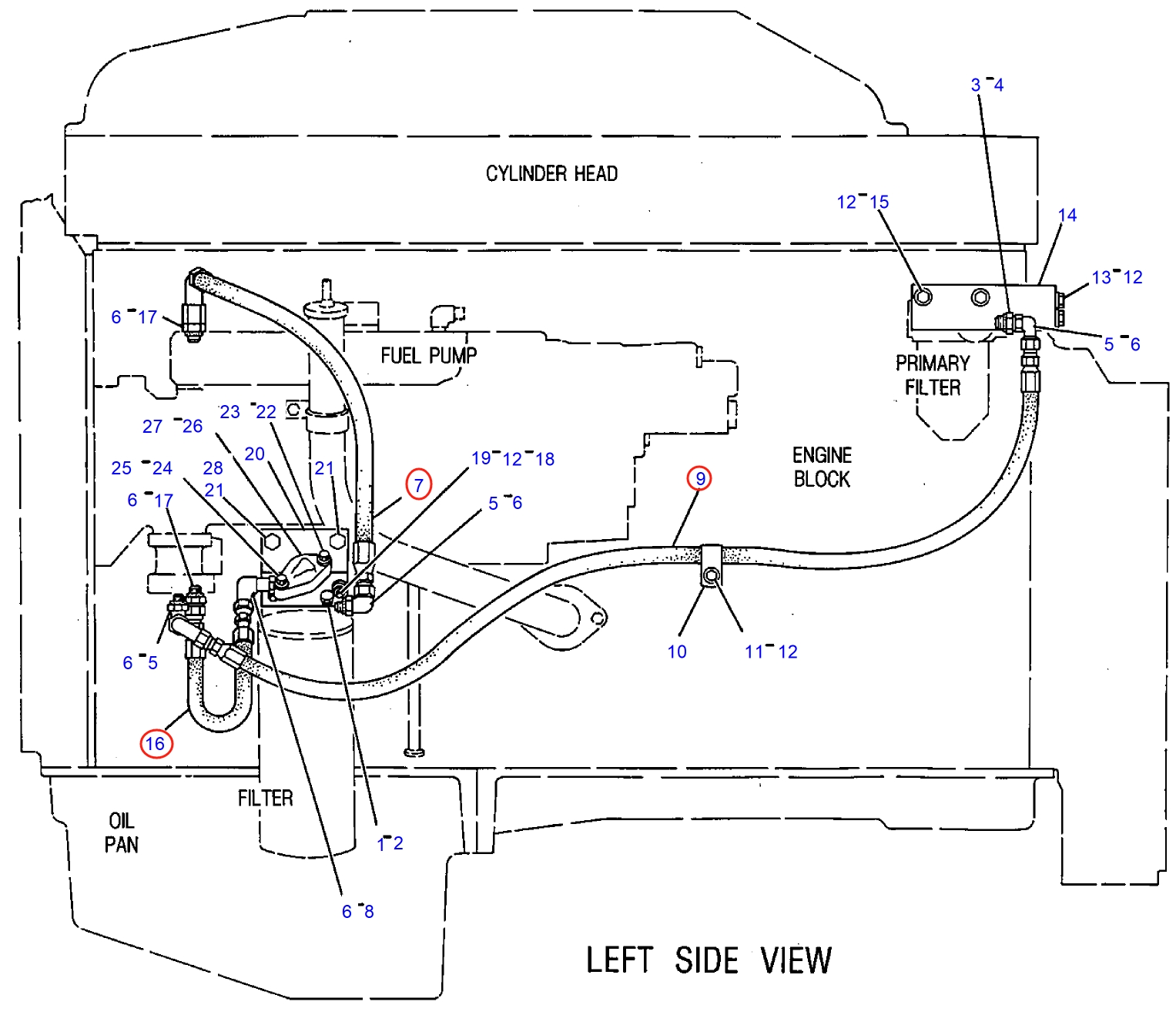

Caterpillar CAT®245 installation diagram showing hydraulic hose 9N-3370 at Pipe No. 16
Caterpillar CAT®245Part 9N-3370 · Pipe No. 16Open full-size diagram

Repair specifications

Part number
9N-3370
Diagram pipe number
16
Installation route
燃油泵~燃油过滤器
Hose specification
DN8;-5;10.3Mpa
Finished length
260 mm
Working pressure
10.3 MPa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 2

2G-4562

Installation route: 虹吸式歧管(发动机)

Length
636 mm
Specification
DN6;-4;10.3Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
