Individual hose record

2V-8679 Hose Repair Specifications

Excavator · Caterpillar · CAT®231D · Control Lever

Finished length794 mm

Locate this hose

Installation diagram — Pipe No. 14

Locate Pipe No. 14 in the diagram, then confirm part number 2V-8679 before removing the hose.

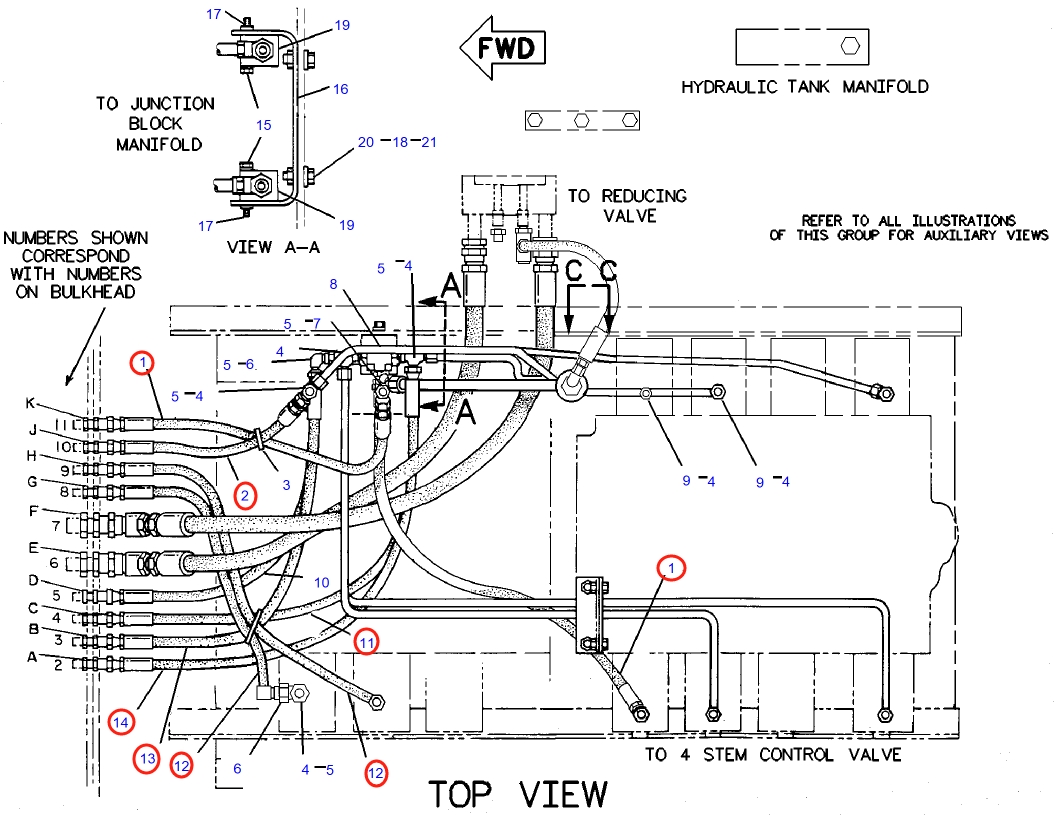

Caterpillar CAT®231D installation diagram showing hydraulic hose 2V-8679 at Pipe No. 14 — Caterpillar CAT®231DPart 2V-8679 · Pipe No. 14Open full-size diagram

Repair specifications

Part number: 2V-8679
Diagram pipe number: 14
Installation route: 中转接头~过渡阀块(中转接头后)
Hose specification: DN10;1SN-6;15.7Mpa
Finished length: 794 mm
Working pressure: 15.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 2

7V-4250

Installation route: 中转接头~分配阀(3阀芯)

Length: 1,010 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 4

1V-9721

Installation route: 中转接头~过渡阀块(回转马达左)

Length: 762 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 11

1V-9721

Installation route: 中转接头~过渡阀块(中转接头后)

Length: 762 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
