Individual hose record
1V-9721 Hose Repair Specifications
Excavator · Caterpillar · CAT®231D · Control Lever
Finished length762 mm
Locate this hose

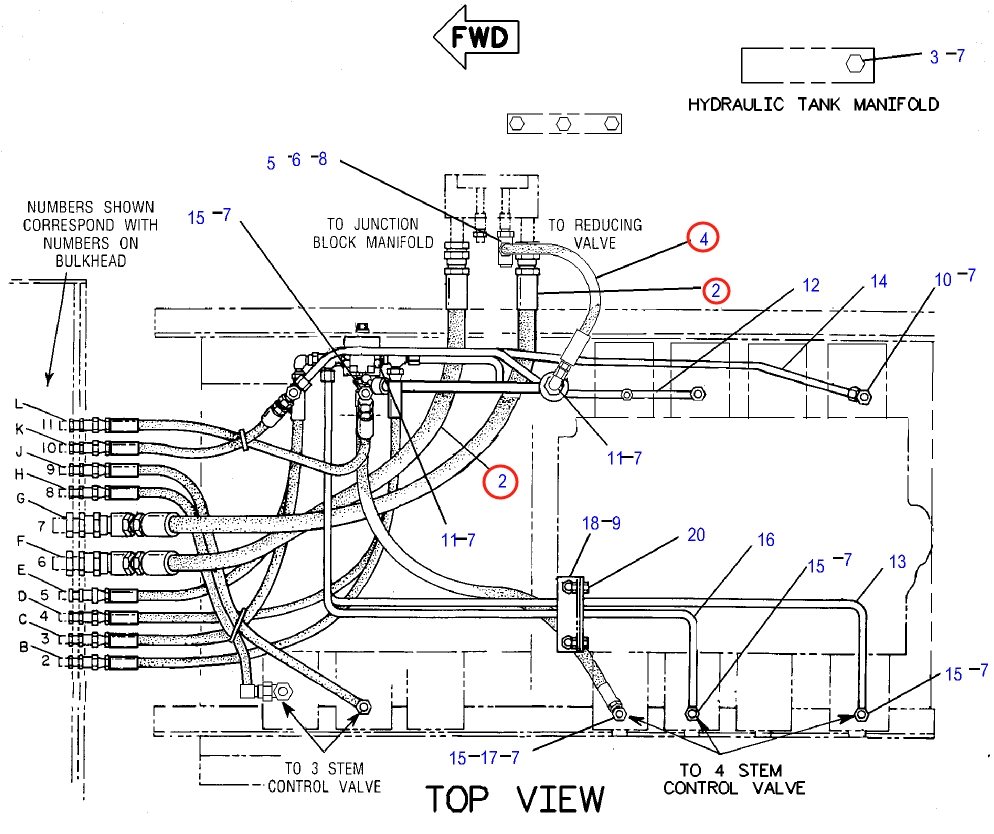

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 1V-9721 before removing the hose.
Repair specifications
- Part number
- 1V-9721
- Diagram pipe number
- 4
- Installation route
- 中转接头~过渡阀块(回转马达左)
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 762 mm
- Working pressure
- 10.4 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 2
Same system
Related Hoses
- Length
- 1,010 mm
- Specification
- DN19;1SN-12;8.7Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 762 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
For reference only. Confirm the actual hose before fabrication.
