Individual hose record

127-6859 Hose Repair Specifications

Excavator · Caterpillar · CAT®311B · Attachments

Finished length1,550 mm

Locate this hose

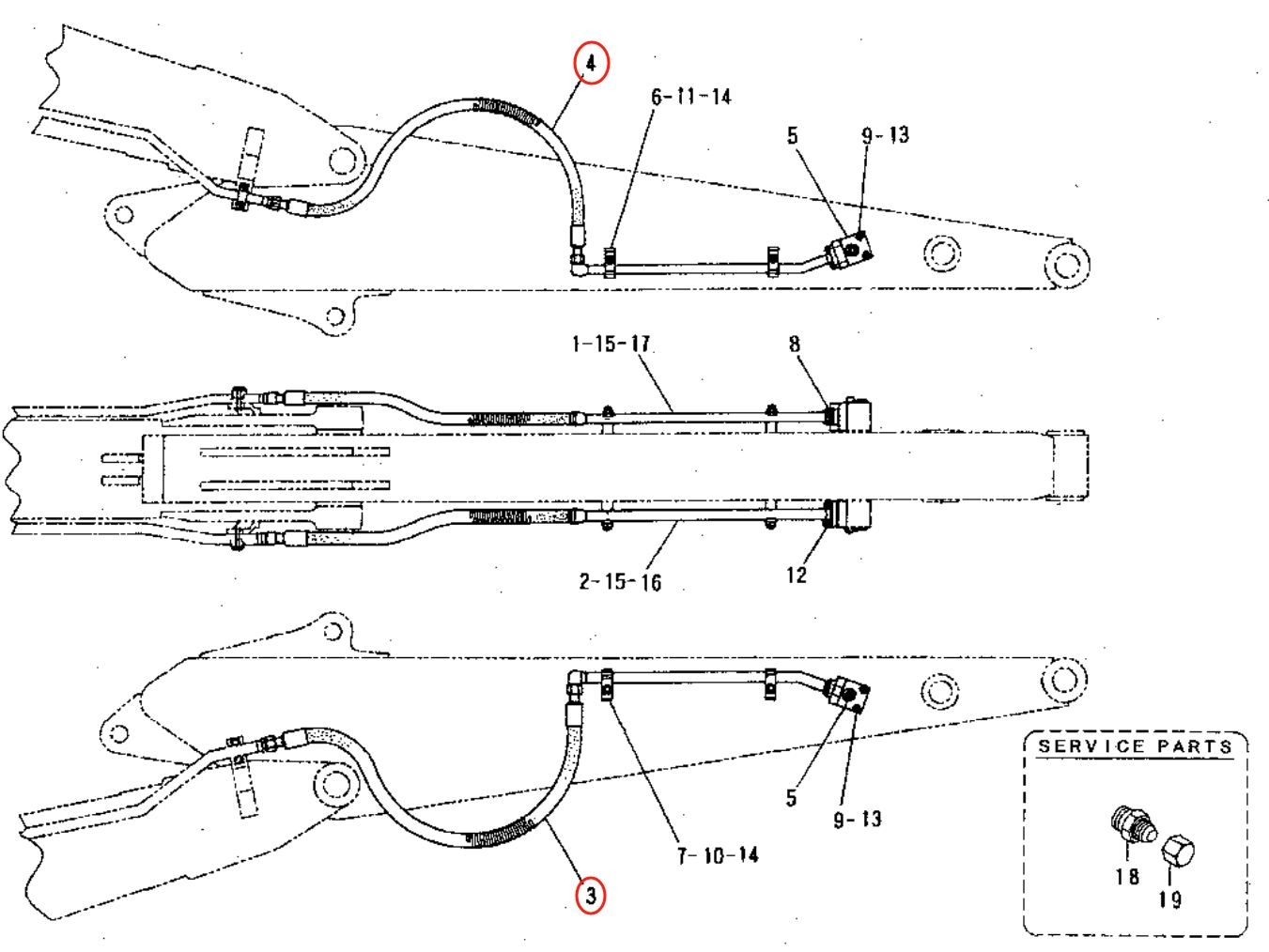

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 127-6859 before removing the hose.

Caterpillar CAT®311B installation diagram showing hydraulic hose 127-6859 at Pipe No. 3 — **Caterpillar CAT®311B**Part 127-6859 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: 127-6859
Diagram pipe number: 3
Installation route: 大臂(附加装置)~小臂(附加装置)
Hose specification: DN25;6SH-16;42Mpa
Finished length: 1,550 mm
Working pressure: 42 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 6

132-1576

Installation route: 大臂(附加装置)~左过渡阀块(附加装置)

Length: 910 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 13

4I-1845

Installation route: 过渡阀块(分配阀左前)~手动阀(连分配阀)

Length: 400 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 5

132-1572

Installation route: 大臂(附加装置)~右过渡阀块(附加装置)

Length: 930 mm
Specification: DN25;4SP-16;35Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 11

4I-6233

Installation route: 踏板(附加装置)~分配阀下

Length: 2,650 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 19

111-1055

Installation route: 右踏板~控制阀(分配阀右前)

Length: 2,550 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 6

124-1154

Installation route: 液压油散热器~单向阀(分配阀后)

Length: 969 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 4

4I-5556

Installation route: 大臂(附加装置)~小臂(附加装置)

Length: 1,550 mm
Specification: DN19;6SH-12;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 15

4I-1413

Installation route: 踏板(附加装置)~手动阀(连分配阀)

Length: 2,530 mm
Specification: DN10;-6;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
