124-1154 Hose Repair Specifications

Excavator · Caterpillar · CAT®311B · Attachments

Finished length969 mm

Locate this hose

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 124-1154 before removing the hose.

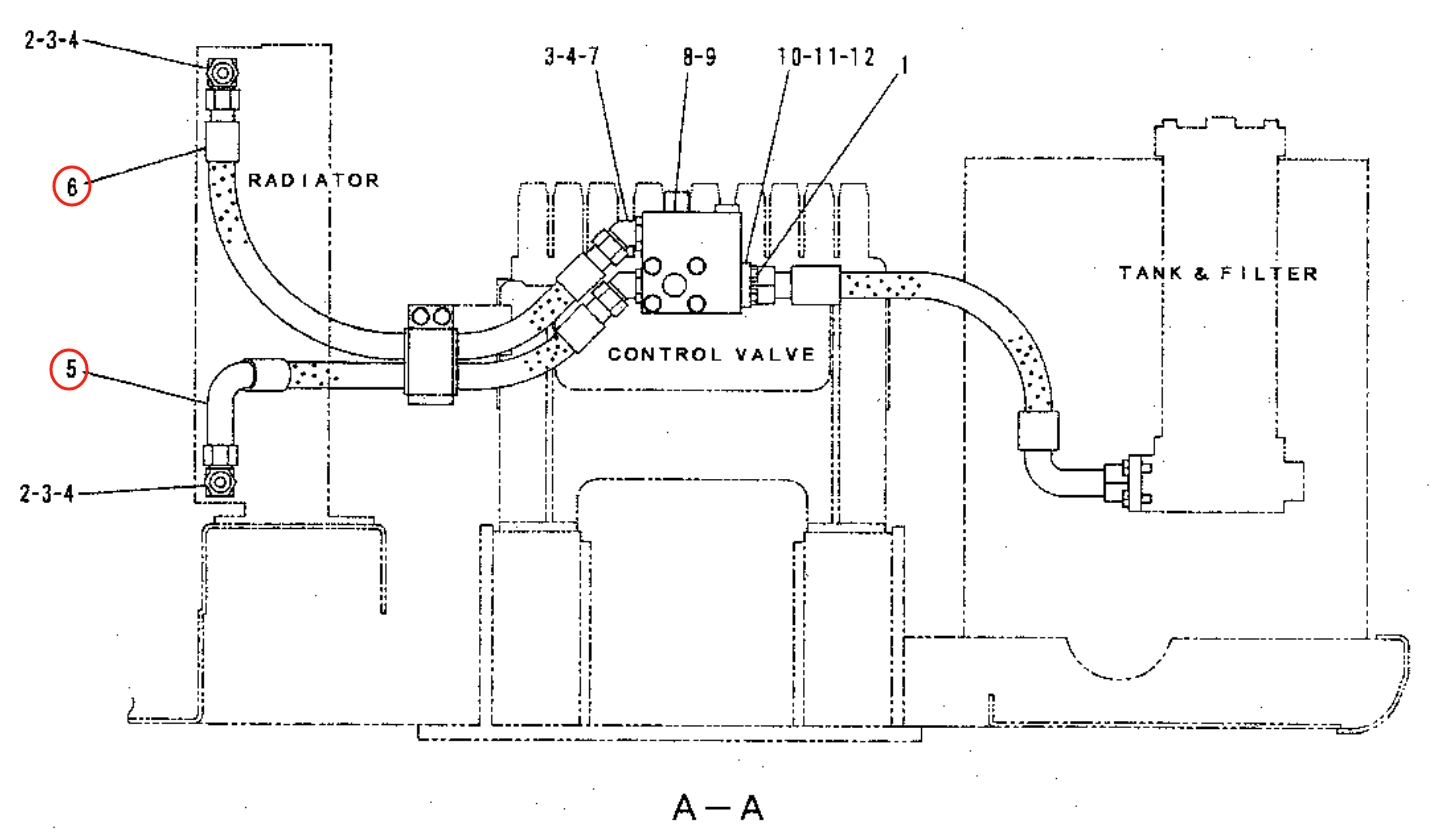

Caterpillar CAT®311B installation diagram showing hydraulic hose 124-1154 at Pipe No. 6 — **Caterpillar CAT®311B**Part 124-1154 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 124-1154
Diagram pipe number: 6
Installation route: 液压油散热器~单向阀(分配阀后)
Hose specification: DN25;1SN-16;7Mpa
Finished length: 969 mm
Working pressure: 7 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1
