4V-9199 Hose Repair Specifications

Excavator · Caterpillar · CAT®245 · Hydraulic Pump

Finished length585 mm

Locate this hose

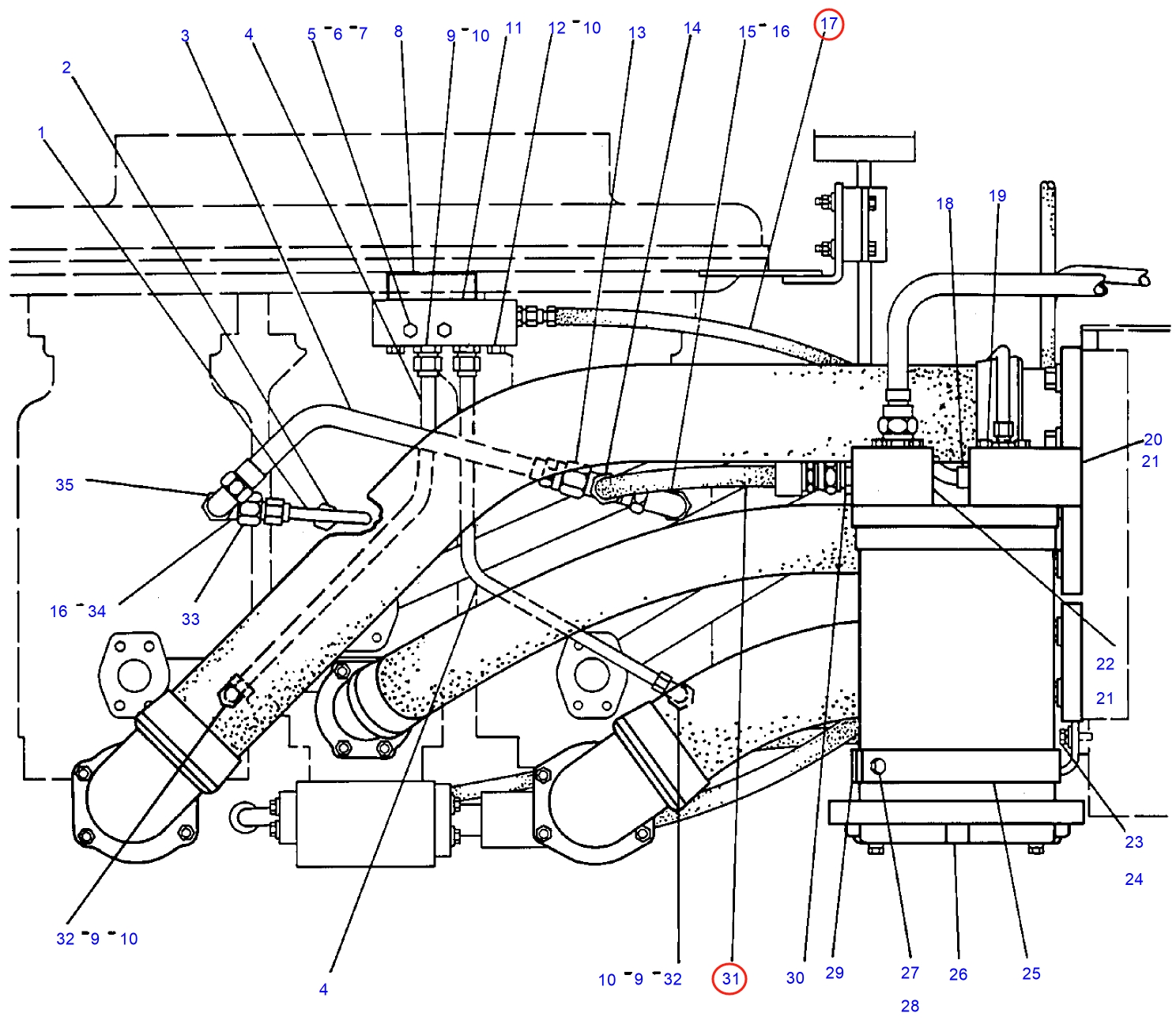

Installation diagram — Pipe No. 31

Locate Pipe No. 31 in the diagram, then confirm part number 4V-9199 before removing the hose.

Caterpillar CAT®245 installation diagram showing hydraulic hose 4V-9199 at Pipe No. 31 — Caterpillar CAT®245Part 4V-9199 · Pipe No. 31Open full-size diagram

Repair specifications

Part number: 4V-9199
Diagram pipe number: 31
Installation route: 液压泵~液压油箱
Hose specification: DN25;1SN-16;7Mpa
Finished length: 585 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 7

8K-4863

Installation route: 液压泵~液压油箱

Length: 558 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications
