Individual hose record
5W-1917 Hose Repair Specifications
Excavator · Caterpillar · CAT®212 · Attachments – Breaker
Finished length2,350 mm
Locate this hose

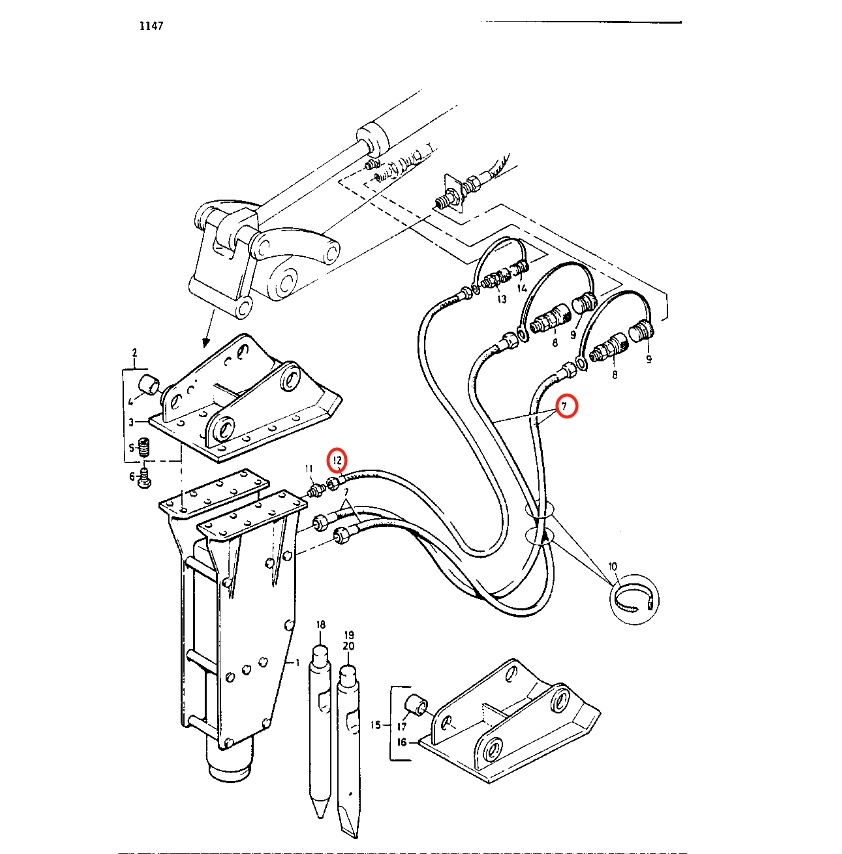

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 5W-1917 before removing the hose.
Repair specifications
- Part number
- 5W-1917
- Diagram pipe number
- 7
- Installation route
- 大臂(破碎器)~破碎器
- Hose specification
- DN25;4SP-16;28Mpa
- Finished length
- 2,350 mm
- Working pressure
- 28 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 公制内螺纹24°锥带O形圈-重型
- Quantity
- 2
