Individual hose record
5W-7138 Hose Repair Specifications
Excavator · Caterpillar · CAT®212 · Attachments – Breaker
Finished length6,148 mm
Locate this hose

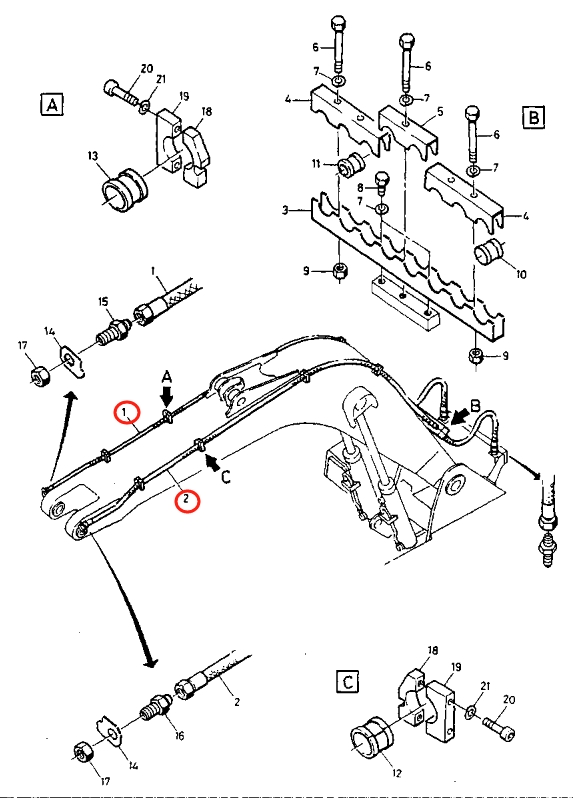

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 5W-7138 before removing the hose.
Repair specifications
- Part number
- 5W-7138
- Diagram pipe number
- 1
- Installation route
- 大臂破碎器管
- Hose specification
- DN19;4SP-12;35Mpa
- Finished length
- 6,148 mm
- Working pressure
- 35 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 公制内螺纹24°锥带O形圈-重型
- Quantity
- 1
Same system
Related Hoses
- Length
- 2,350 mm
- Specification
- DN25;4SP-16;28Mpa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 公制内螺纹24°锥带O形圈-重型
- Length
- 5,250 mm
- Specification
- DN25;2SN-16;16.5Mpa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 公制内螺纹24°锥带O形圈-轻型
- Length
- 5,250 mm
- Specification
- DN19;4SP-12;35Mpa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 公制内螺纹24°锥带O形圈-重型
- Length
- 1,100 mm
- Specification
- DN19;4SP-12;35Mpa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 公制内螺纹24°锥带O形圈-重型
- Length
- 2,350 mm
- Specification
- DN25;4SP-16;28Mpa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 公制内螺纹24°锥带O形圈-重型
- Length
- 5,250 mm
- Specification
- DN25;2SN-16;16.5Mpa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 公制内螺纹24°锥带O形圈-轻型
- Length
- 1,103 mm
- Specification
- DN25;2SN-16;16.5Mpa
- Left fitting
- 公制内螺纹24°锥带O形圈-轻型
- Right fitting
- 公制内螺纹24°锥带O形圈-轻型
For reference only. Confirm the actual hose before fabrication.
