111-6518 Hose Repair Specifications

Excavator · Caterpillar · CAT®307-A · Attachments

Finished length1,100 mm

Locate this hose

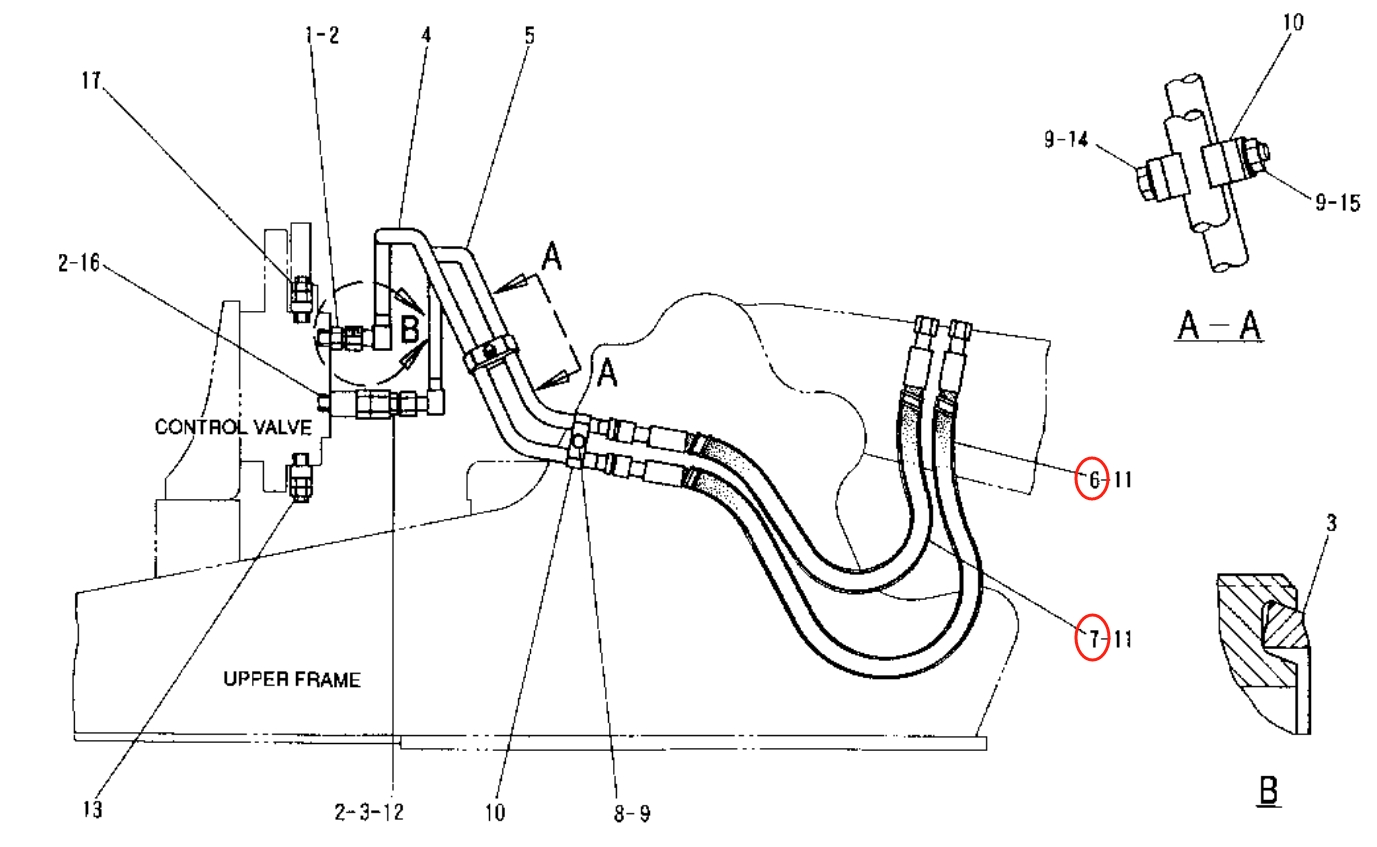

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 111-6518 before removing the hose.

Caterpillar CAT®307-A installation diagram showing hydraulic hose 111-6518 at Pipe No. 6
Caterpillar CAT®307-APart 111-6518 · Pipe No. 6Open full-size diagram

Repair specifications

Part number
111-6518
Diagram pipe number
6
Installation route
大臂(附加装置)~分配阀前
Hose specification
DN13;4SP-8;28Mpa
Finished length
1,100 mm
Working pressure
28 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 1

7I-0082

Installation route: 大臂(附加装置)~小臂(附加装置)

Length
970 mm
Specification
DN16;4SP-10;28Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 1

7I-0079

Installation route: 大臂(附加装置)~小臂(附加装置)

Length
1,370 mm
Specification
DN16;4SP-10;28Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 8

108-9019

Installation route: 大臂(附加装置)~小臂(附加装置)

Length
2,230 mm
Specification
DN13;4SP-8;28Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 11

108-7562

Installation route: 大臂(附加装置)~过渡接头(回转马达右)

Length
1,100 mm
Specification
DN16;4SP-10;28Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 10

108-7565

Installation route: 大臂(附加装置)~过渡接头(回转马达右)

Length
860 mm
Specification
DN16;4SP-10;28Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 7

111-6511

Installation route: 大臂(附加装置)~分配阀前

Length
860 mm
Specification
DN13;4SP-8;28Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
