Individual hose record

111-6505 Hose Repair Specifications

Excavator · Caterpillar · CAT®307-A · Attachments

Finished length2,300 mm

Locate this hose

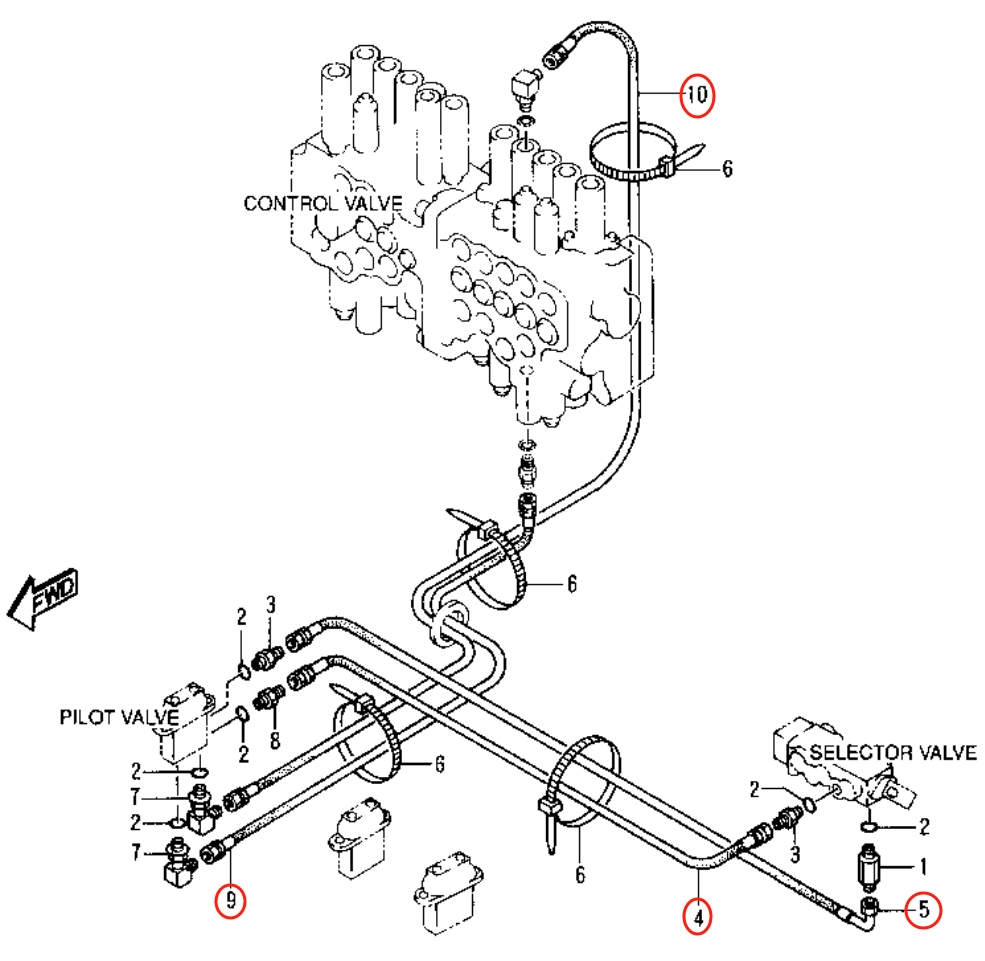

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number 111-6505 before removing the hose.

Caterpillar CAT®307-A installation diagram showing hydraulic hose 111-6505 at Pipe No. 10
Caterpillar CAT®307-APart 111-6505 · Pipe No. 10Open full-size diagram

Repair specifications

Part number
111-6505
Diagram pipe number
10
Installation route
右踏板~分配阀上
Hose specification
DN6;-4;10.3Mpa
Finished length
2,300 mm
Working pressure
10.3 MPa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 1

7I-0082

Installation route: 大臂(附加装置)~小臂(附加装置)

Length
970 mm
Specification
DN16;4SP-10;28Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 6

111-6518

Installation route: 大臂(附加装置)~分配阀前

Length
1,100 mm
Specification
DN13;4SP-8;28Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 1

7I-0079

Installation route: 大臂(附加装置)~小臂(附加装置)

Length
1,370 mm
Specification
DN16;4SP-10;28Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 8

108-9019

Installation route: 大臂(附加装置)~小臂(附加装置)

Length
2,230 mm
Specification
DN13;4SP-8;28Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 11

108-7562

Installation route: 大臂(附加装置)~过渡接头(回转马达右)

Length
1,100 mm
Specification
DN16;4SP-10;28Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 10

108-7565

Installation route: 大臂(附加装置)~过渡接头(回转马达右)

Length
860 mm
Specification
DN16;4SP-10;28Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 7

111-6511

Installation route: 大臂(附加装置)~分配阀前

Length
860 mm
Specification
DN13;4SP-8;28Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
