Individual hose record

KNJ2518 Hose Repair Specifications

Excavator · Case · CX130 · Boom Assembly

Finished length1,030 mm

Locate this hose

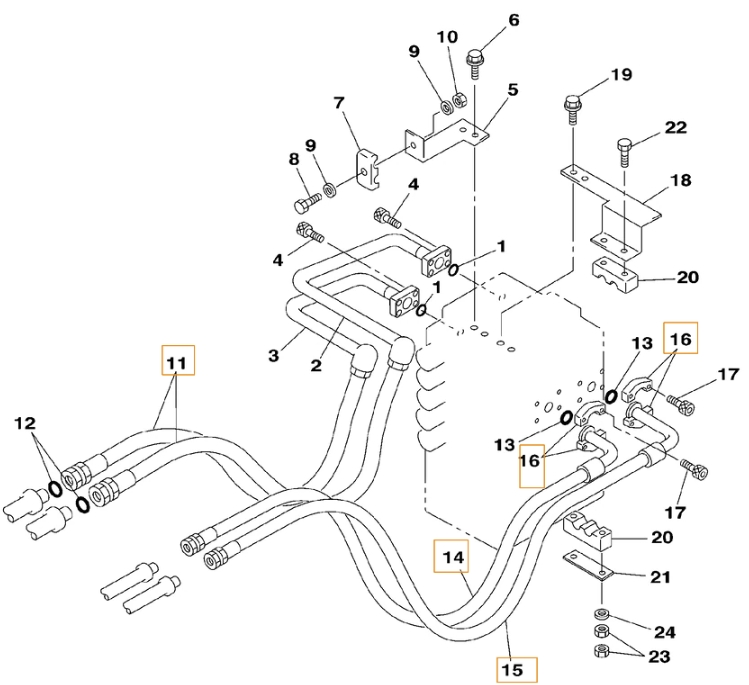

Installation diagram — Pipe No. 11

Locate Pipe No. 11 in the diagram, then confirm part number KNJ2518 before removing the hose.

Part number: KNJ2518
Diagram pipe number: 11
Installation route: 大臂左3/左4
Hose specification: DN16;4SP-10;38MPa
Finished length: 1,030 mm
Working pressure: 38 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 16

Installation route: 大臂油缸左1/左4

Length: 650 mm
Specification: DN19;4SP-12;35MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹平面密封

Diagram Pipe No. 2

Installation route: 小臂油缸

Length: 1,000 mm
Specification: DN19;4SP-12;35MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹平面密封

Diagram Pipe No. 20

Installation route: Boom cylinder — left 2 / left 3Original Chinese: 大臂油缸左2/左3

Length: 650 mm
Specification: DN13;4SH-08;41.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
