Individual hose record

KRV2405 Hose Repair Specifications

Excavator · Case · CX130 · Boom Assembly

Finished length1,000 mm

Locate this hose

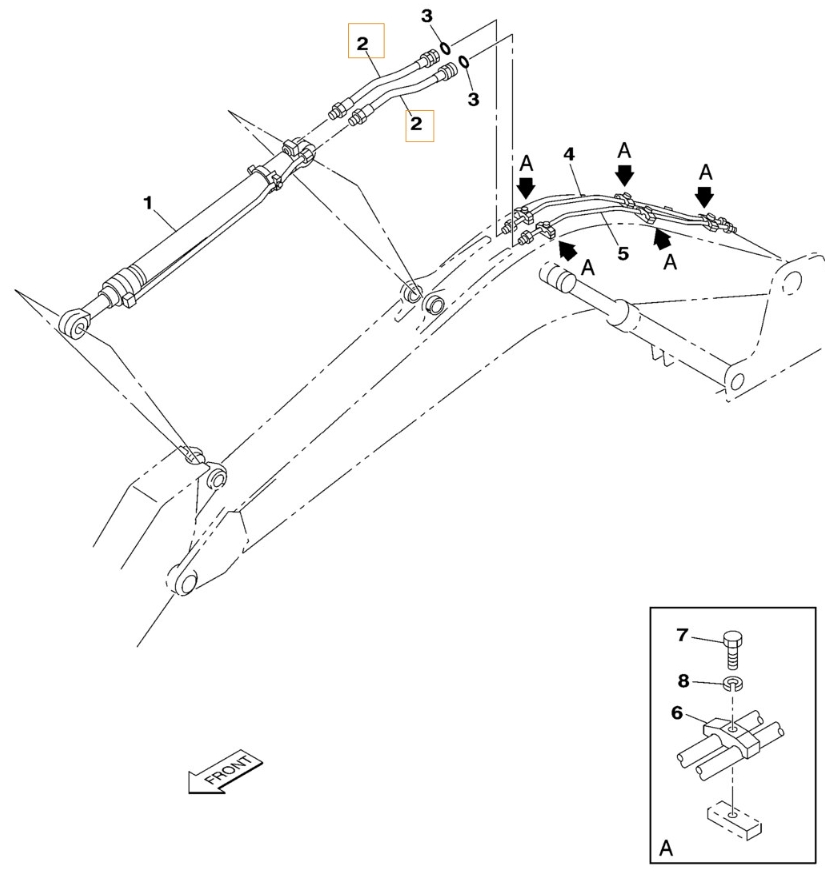

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number KRV2405 before removing the hose.

Part number: KRV2405
Diagram pipe number: 2
Installation route: 小臂油缸
Hose specification: DN19;4SP-12;35MPa
Finished length: 1,000 mm
Working pressure: 35 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹平面密封
Quantity: 2

Same system

Diagram Pipe No. 16

Installation route: 大臂油缸左1/左4

Length: 650 mm
Specification: DN19;4SP-12;35MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹平面密封

Diagram Pipe No. 11

Installation route: 大臂左3/左4

Length: 1,030 mm
Specification: DN16;4SP-10;38MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹平面密封

Diagram Pipe No. 20

Installation route: Boom cylinder — left 2 / left 3Original Chinese: 大臂油缸左2/左3

Length: 650 mm
Specification: DN13;4SH-08;41.5MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: 英制外螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
