Individual hose record

484-9235 Hose Repair Specifications

Excavator · Caterpillar · CAT®M317F · Hydraulic Tank

Finished length812 mm

Locate this hose

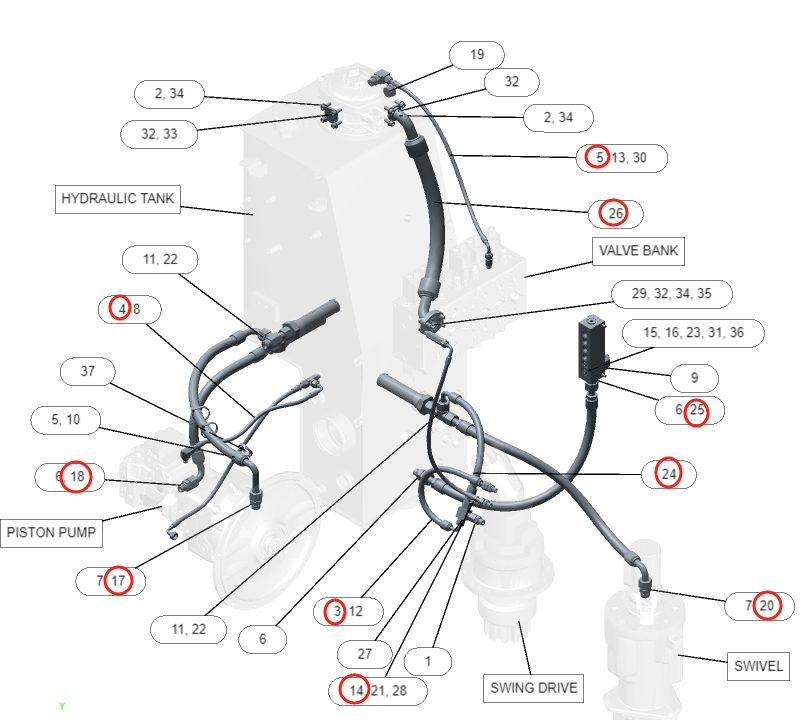

Installation diagram — Pipe No. 25

Locate Pipe No. 25 in the diagram, then confirm part number 484-9235 before removing the hose.

Part number: 484-9235
Diagram pipe number: 25
Installation route: 液压油箱~
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 812 mm
Working pressure: 8.7 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 8

Installation route: 液压油箱~过渡接头(液压油箱前)

Length: 1,070 mm
Specification: DN13;1SN-8;14Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 4

Installation route: 液压油箱~

Length: 1,100 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 42

Installation route: 液压油过滤器(制动器)~

Length: 1,670 mm
Specification: DN16;4SP-10;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
