Individual hose record

486-9259 Hose Repair Specifications

Excavator · Caterpillar · CAT®M317F · Hydraulic Tank

Finished length1,670 mm

Locate this hose

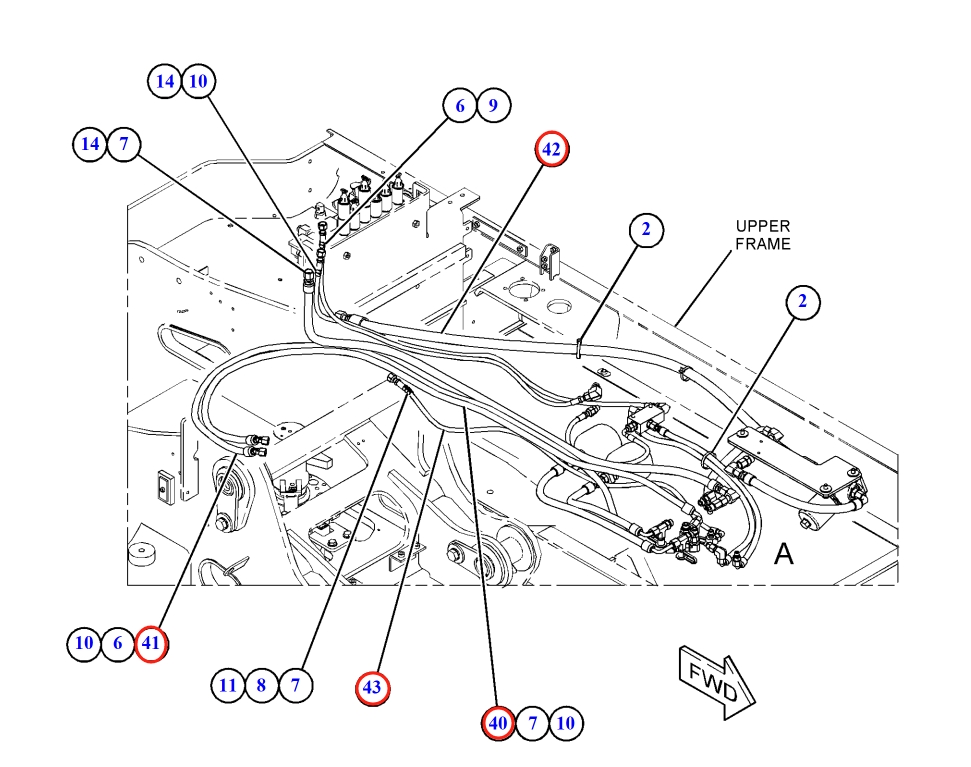

Installation diagram — Pipe No. 42

Locate Pipe No. 42 in the diagram, then confirm part number 486-9259 before removing the hose.

Part number: 486-9259
Diagram pipe number: 42
Installation route: 液压油过滤器(制动器)~
Hose specification: DN16;4SP-10;28Mpa
Finished length: 1,670 mm
Working pressure: 28 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 8

Installation route: 液压油箱~过渡接头(液压油箱前)

Length: 1,070 mm
Specification: DN13;1SN-8;14Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 25

Installation route: 液压油箱~

Length: 812 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 4

Installation route: 液压油箱~

Length: 1,100 mm
Specification: DN10;6SH-6;42Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
