Hose assembly specifications

F071224 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1170G Wheeled Harvester 8W

Total length680 mm

Hose drawing

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

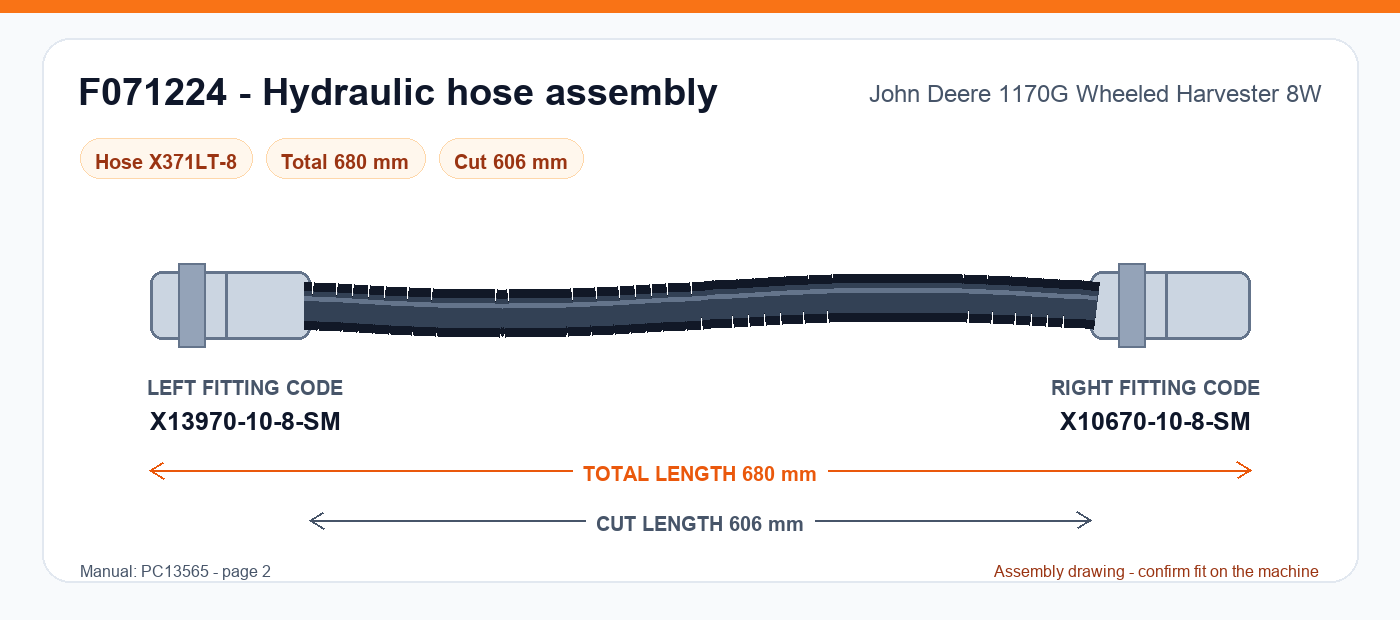

F071224 hydraulic hose assembly drawing for John Deere 1170G Wheeled Harvester 8W - 680 mm total length, left fitting X13970-10-8-SM, right fitting X10670-10-8-SM — F071224 - 680 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1170G Wheeled Harvester 8W
Part number: F071224
Hose type: X371LT-8
Total length: 680 mm
Cut length: 606 mm
Left-end hydraulic fitting code: X13970-10-8-SMLook up this code
Right-end hydraulic fitting code: X10670-10-8-SMJIC 37° female swivel straight · 7/8-14 UNF · 1/2 inch / DN12 hoseSee fitting details
Manual reference: PC13565, page 2

Hose assembly details

Part number: F071224
Hose type: X371LT-8
Total length: 680 mm
Cut length: 606 mm
Left fitting code: X13970-10-8-SM
Right fitting code: X10670-10-8-SM
Application: 1170G Wheeled Harvester: 8W, Stage V / Tier 4, Rotating and Leveling Cabin Gen II
Manual page: 2

Download manual
