Hose assembly specifications

F695545 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1170G Wheeled Harvester 8W

Total length2,000 mm

Hose drawing

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

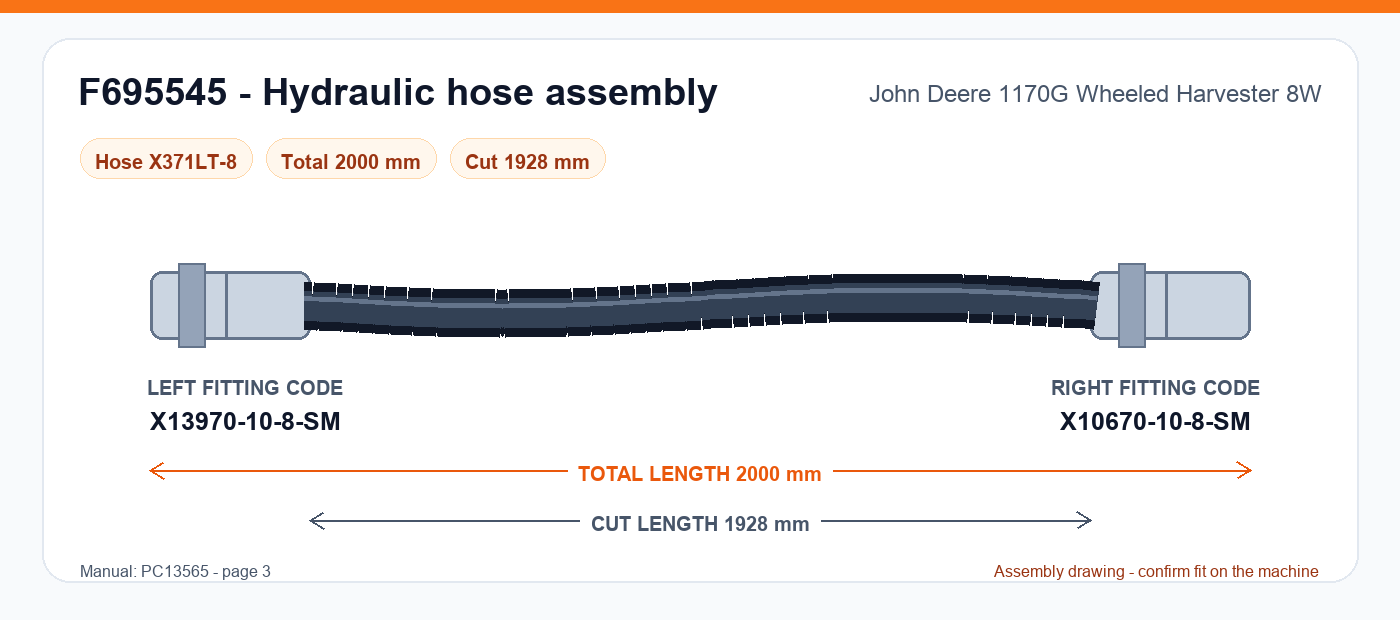

F695545 hydraulic hose assembly drawing for John Deere 1170G Wheeled Harvester 8W - 2,000 mm total length, left fitting X13970-10-8-SM, right fitting X10670-10-8-SM — F695545 - 2,000 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1170G Wheeled Harvester 8W
Part number: F695545
Hose type: X371LT-8
Total length: 2,000 mm
Cut length: 1,928 mm
Left-end hydraulic fitting code: X13970-10-8-SMLook up this code
Right-end hydraulic fitting code: X10670-10-8-SMJIC 37° female swivel straight · 7/8-14 UNF · 1/2 inch / DN12 hoseSee fitting details
Manual reference: PC13565, page 3

Hose assembly details

Part number: F695545
Hose type: X371LT-8
Total length: 2,000 mm
Cut length: 1,928 mm
Left fitting code: X13970-10-8-SM
Right fitting code: X10670-10-8-SM
Application: 1170G Wheeled Harvester: 8W, Stage V / Tier 4, Rotating and Leveling Cabin Gen II
Manual page: 3

Download manual
