Individual hose record

3V-9512 Hose Repair Specifications

Excavator · Caterpillar · CAT®235B · Attachments

Finished length1,780 mm

Locate this hose

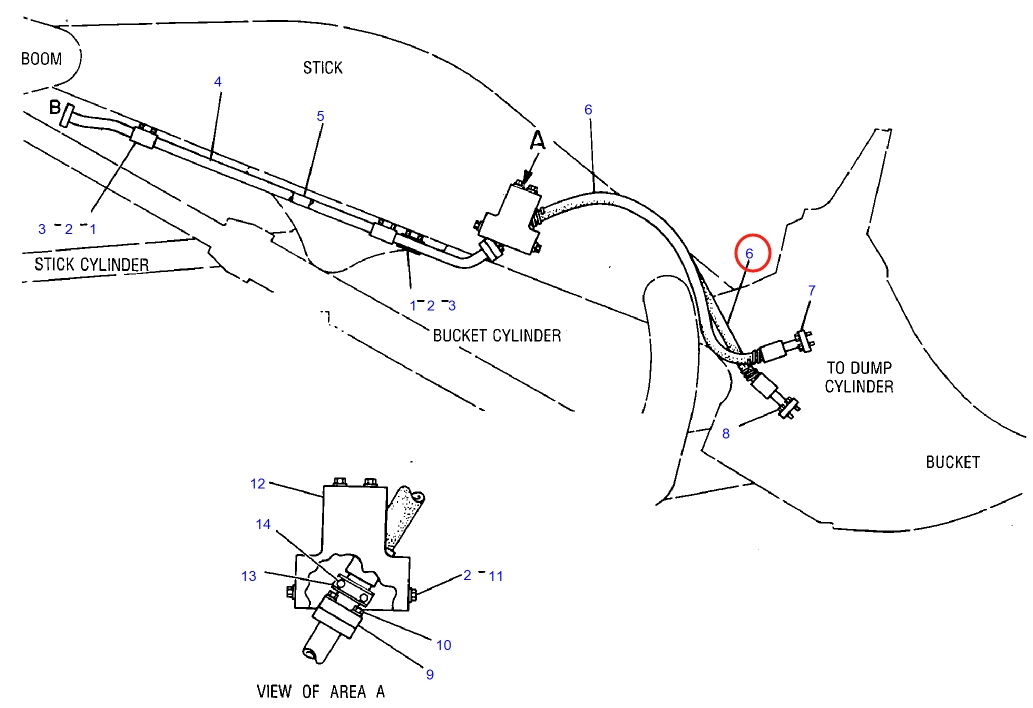

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 3V-9512 before removing the hose.

Caterpillar CAT®235B installation diagram showing hydraulic hose 3V-9512 at Pipe No. 6
Caterpillar CAT®235BPart 3V-9512 · Pipe No. 6Open full-size diagram

Repair specifications

Part number
3V-9512
Diagram pipe number
6
Installation route
小臂(小臂侧)~正铲油缸
Hose specification
DN25;4SP-16;35Mpa
Finished length
1,780 mm
Working pressure
35 MPa
Left fitting
Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting
Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity
2

Same system

Related Hoses

Diagram Pipe No. 3

8K-4232

Installation route: 液压油散热器左~液压油散热器右

Length
950 mm
Specification
DN25;1SN-16;7Mpa
Left fitting
美制内螺纹37°锥
Right fitting
美制内螺纹37°锥
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
