3V-1330 Hose Repair Specifications

Excavator · Caterpillar · CAT®235B · Attachments

Finished length686 mm

Locate this hose

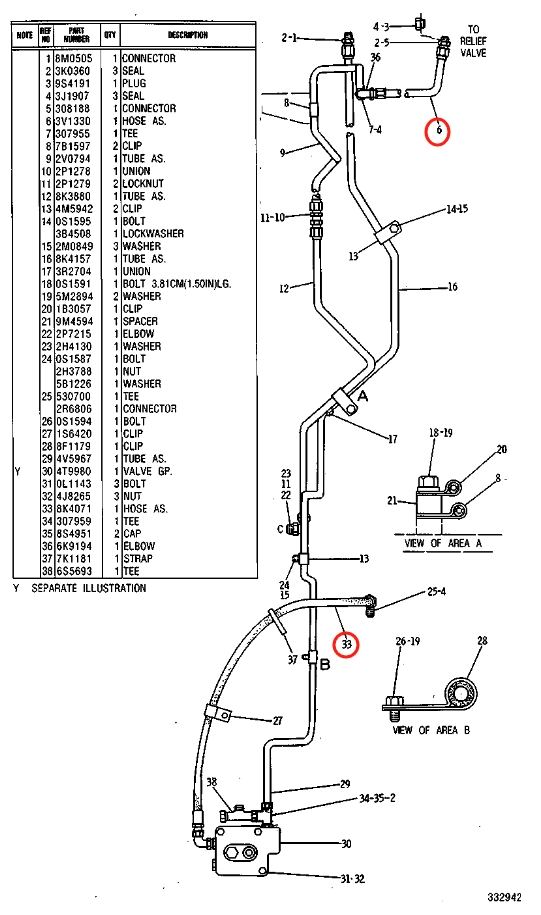

Installation diagram — Pipe No. 6

Locate Pipe No. 6 in the diagram, then confirm part number 3V-1330 before removing the hose.

Caterpillar CAT®235B installation diagram showing hydraulic hose 3V-1330 at Pipe No. 6 — Caterpillar CAT®235BPart 3V-1330 · Pipe No. 6Open full-size diagram

Repair specifications

Part number: 3V-1330
Diagram pipe number: 6
Installation route: 安全阀~铁管
Hose specification: DN8;-5;15.7Mpa
Finished length: 686 mm
Working pressure: 15.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 6

3V-9512

Installation route: 小臂(小臂侧)~正铲油缸

Length: 1,780 mm
Specification: DN25;4SP-16;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 3

8K-4232

Installation route: 液压油散热器左~液压油散热器右

Length: 950 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
